2233839C93
WINDOW, PASS SPLIT SASH ASSEMBLY 36IN W/12IN OPN ALUMINUM TEMPERATURE 28%
IC Bus
BACK ORDERED
Please contact us for information on lead time
$749.95
$899.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
WINDOW, PASS SPLIT SASH ASSEMBLY 36IN W/12IN OPN ALUMINUM TEMPERATURE 28%

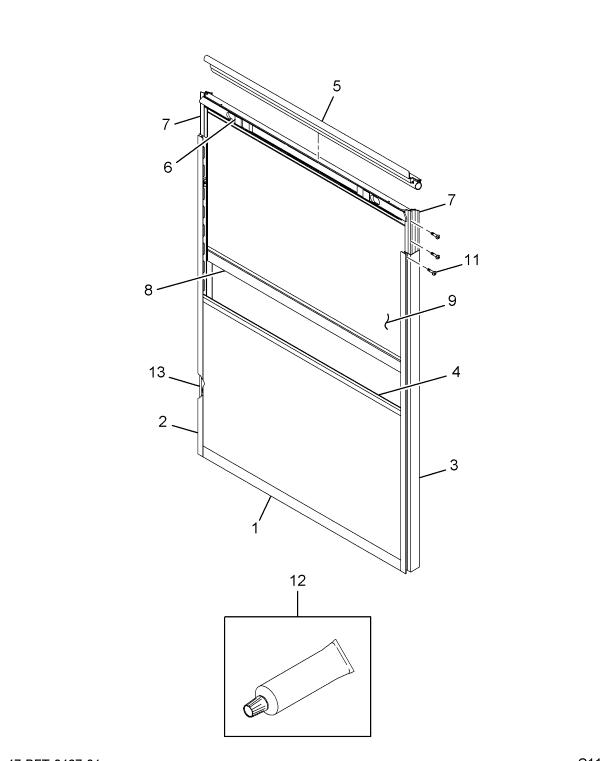

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, WINDOW EXTRUDED ALUMINUM | 1 | 2209627C3 |
| SCREW 1" | 12 | 2209431C1 |
| GLAZING, TEMPERED WINDOW | 1 | 2205499C2 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR SIDE L ALUMINUM | 1 | 2234060C1 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR SIDE R ALUMINUM | 1 | 2234061C1 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR MIDDLE 36 IN ALUMINUM | 1 | 2234614C91 |
| FR, WINDOW TOP FIXED EXTRUDED ALUMINUM 36" | 1 | 2205213C3 |
| EXTRUSION, ALUMINUM WINDOW SLIDING FR TOP AL 36 IN | 1 | 2234045C1 |
| EXTRUSION, ALUMINUM WINDOW SLIDING FR SIDE BK | 2 | 2234043C2 |
| EXTRUSION, ALUMINUM WINDOW SLIDING FR BOT AL 36 IN | 1 | 2234035C3 |
| GLASS, TEMPERED SPLIT SASH PASSENGER WINDOW 36" | 2 | 2209532C1 |
