2241047C92
WINDOW PASS SPLIT SASH ASSEMBLY STANDARD 9IN OPN BK CLEAR TEMPERED
IC Bus
BACK ORDERED
Please contact us for information on lead time
$109.95
$131.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
WINDOW PASS SPLIT SASH ASSEMBLY STANDARD 9IN OPN BK CLEAR TEMPERED

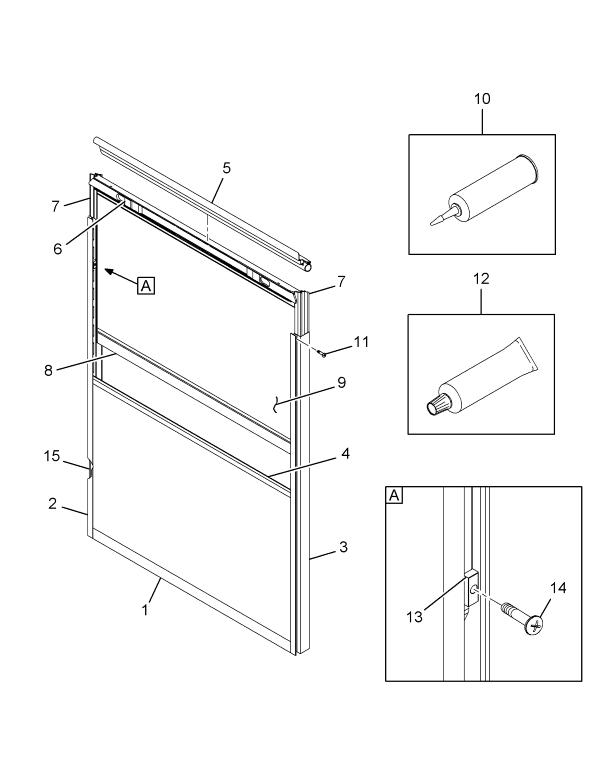

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, WINDOW BOTTOM FIXED EXTRUDED ALUMINUM | 1 | 2205208C5 |
| SCREW 1" | 12 | 2209431C1 |
| STOP, WINDOW OPENING | 2 | 2205674C2 |
| SCREW, FLAT HEAD COUNTERSUNK TYPE AB #6 X 3/4" | 2 | 91307100 |
| GLAZING, TEMPERED WINDOW | 1 | 2205498C2 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR SIDE L BK | 1 | 2234062C1 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR SIDE R BK | 1 | 2234063C1 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR MIDDLE STANDARD BLACK | 1 | 2234617C91 |
| FR, WINDOW TOP FIXED EXTRUDED ALUMINUM | 1 | 2205216C3 |
| EXTRUSION, ALUMINUM, WINDOW SLIDING FR TOP BK STANDARD | 1 | 2234048C2 |
| EXTRUSION, ALUMINUM WINDOW SLIDING FR SIDE BK | 2 | 2234043C2 |
| EXTRUSION, ALUMINUM WINDOW SLIDING FR BOT BK STANDARD | 1 | 2234038C3 |
| GLASS, CLEAR TEMPERED SPLIT SASH WINDOW | 2 | 2205466C3 |
