ETN0512392
CARRIER SVC RR R190D 4.30 D/L
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,399.95
$6,479.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

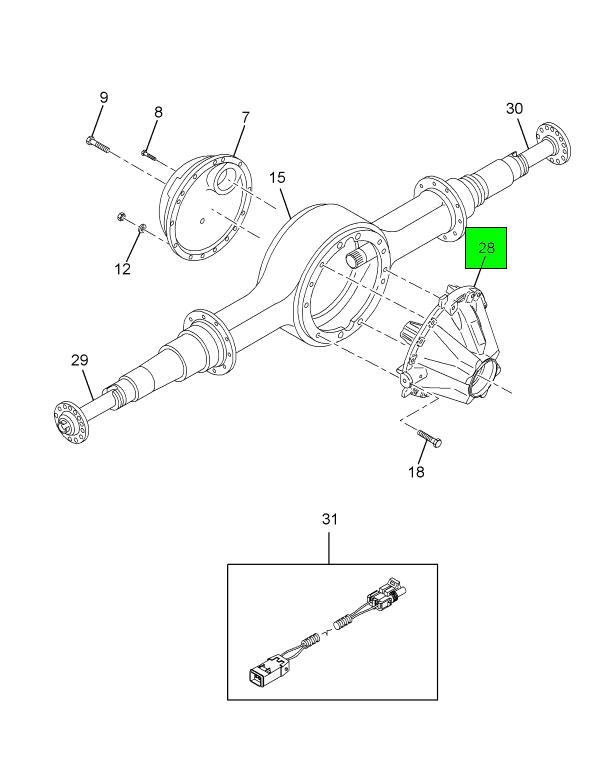

DIFFERENTIAL, REAR S190D 4.3
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CONE, BEARING | 1 | ETN0139968 |
| BEARING, CONE | 1 | DS139970 |
| BEARING, CONE | 1 | ETN0131052 |
| BEARING, CONE INNER PINION | 1 | DS139968 |
| BEARING, CONE INNER PINION | 1 | ETN0131050 |
| CONE, BEARING | 1 | ETN0139970 |
| CUP, BEARING INNER PINION | 2 | ETN0131051 |
| SPACER, PINION BEARING R170/190 8.080 | 1 | DS131070 |
| SPACER, PINION BEARING R170/190 8.080 | 1 | ETN0131070 |
| NUT, PINION Y | 1 | 2598104C1 |
| SEAL OIL D170 SERIES | 1 | ETN0134323 |
| BEARING PINION REAR /REAR | 1 | ETN0129947 |
| BEARING, CONE | 1 | ETN0131041 |
| CUP, BEARING | 1 | ETN0131048 |
| CASE DIFFERENTIAL PLAIN HALF S190D | 1 | ETN0131759 |
| CASE DIFFERENTIAL PLAIN HALF D190 | 1 | ETN0131752 |
| BEARING, CONE | 1 | ETN0131042 |
| CUP, BEARING | 1 | ETN0131044 |
| GEAR, SIDE DIFFERENTIAL | 2 | 2505995C1 |
| GEAR, DIFFERENTIAL | 4 | ETN0131040 |
| BOLT HEXAGON HEAD CAP SCREW | 16 | ETN0131473 |
| CUP, BEARING | 2 | ETN0139969 |
| HEAD STANDARD PARTS | 1 | ETN0512713 |
| GEAR, DIFFERENTIAL SPIDER | 1 | ETN0131039 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
