ETN0513016
CARRIER-SVC R170 6.14
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,299.95
$6,359.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

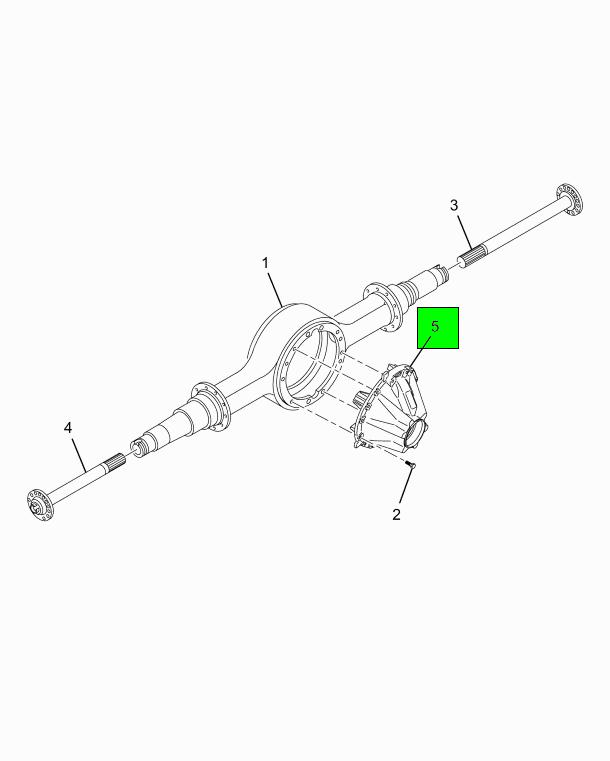

DIFF ASM RR/RR S170 6.14 ABS
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| KIT, R/S170 CARRIER WITH CAP | 1 | ETN0513999 |
| GEAR, SIDE DIFFERENTIAL | 2 | 2505995C1 |
| BEARING, CONE INNER PINION | 1 | DS139968 |
| BEARING, CONE INNER PINION | 1 | ETN0131050 |
| CUP, BEARING INNER PINION | 1 | ETN0131051 |
| BEARING, CONE | 1 | DS139970 |
| BEARING, CONE | 1 | ETN0131052 |
| KIT, PINION SEAL AND NUT | 1 | DS131008K |
| KIT, PINION SEAL AND NUT | 1 | ETN131008K |
| KIT, PINION NUT | 1 | DS131095K |
| KIT, PINION NUT | 1 | ETN131095K |
| BOLT BEARING CAP | 6 | ETN0131016 |
| CUP, BEARING | 2 | ETN0131044 |
| BEARING, CONE | 2 | ETN0131041 |
| CASE, DIFFERENTIAL FLANGE HALF | 1 | ETN0131029 |
| CASE, DIFFERENTIAL PLAIN HALF | 1 | ETN0131478 |
| BOLT HEXAGON HEAD CAP SCREW | 16 | ETN0131473 |
| GEAR, DIFFERENTIAL | 4 | ETN0131040 |
| GEAR, DIFFERENTIAL SPIDER | 1 | ETN0131039 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
