ETN0513690
CARRIER SVC S130FLR 5.13 LS RO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,699.95
$3,239.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

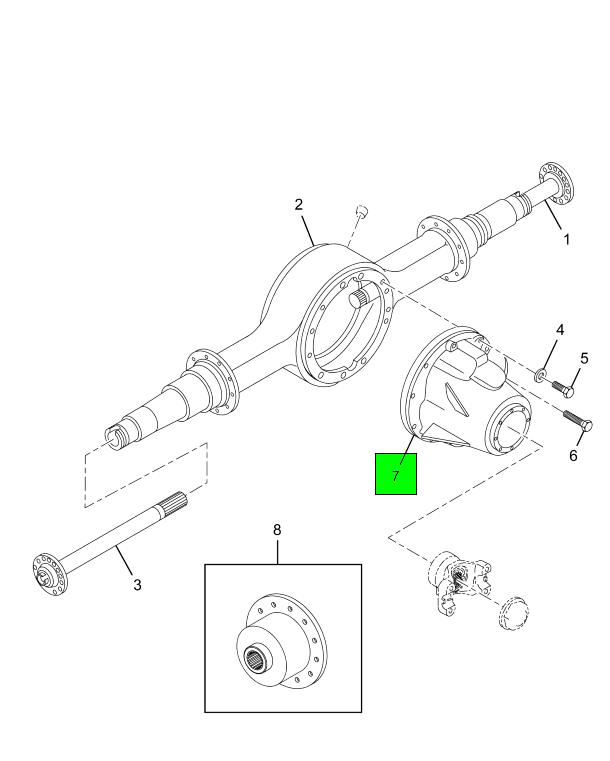

DIFFERENTIAL ASM 5.13 S130FRL
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT PIN BEARING CAGE CHECK | 1 | ETN0130542 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | DS511860 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0511860 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 6 | DS130596 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 6 | ETN0130596 |
| WASHER BOLT COVER | 6 | DS128415HX |
| WASHER BOLT COVER | 6 | ETN0128415 |
| SWITCH, SENSOR ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) S110/130 | 1 | ETN2006251 |
| BOLT, SWITCH | 1 | DS486721 |
| BOLT, SWITCH | 1 | ETN0486721 |
| RING ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) EXCITER | 1 | ETN0130602 |
| BOLT, GEAR | 10 | ETN0132820 |
| CUP, BEARING | 1 | FP3984 |
| CUP, BEARING | 1 | FP3920 |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14ADP | 1 | 1697161C1 |
| CASE, DIFFERENTIAL PLAIN HALF S130 | 1 | ETN0130769 |
| PLUG, FILL DIFFERENTIAL | 1 | ETN0054254 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| GEAR, PINION DIFFERENTIAL | 4 | DS133761 |
| GEAR, PINION DIFFERENTIAL | 4 | ETN0127364 |
| GEAR, DIFFERENTIAL SIDE S130 | 2 | ETN0132807 |
| PIN, DOWEL | 2 | ETN0130605 |
| PIN, SHAFT DIFFERENTIAL S130 | 2 | ETN0130768 |
| PIN, SHAFT DIFFERENTIAL S130 | 1 | ETN0130767 |
| PIN, DOWEL | 2 | ETN0132821 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | DS127591 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | ETN0127591 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 1 | ETN0127386 |
| BEARING | 1 | FP55200C |
| BEARING | 1 | ETN0012496 |
| CUP, BEARING PINION | 1 | FP55437 |
| BEARING, CUP PINION | 1 | FP72487 |
| BEARING, CONE PINION CAGE | 1 | DS129562 |
| BEARING, CONE PINION CAGE | 1 | ETN0129562 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
