1665220C92

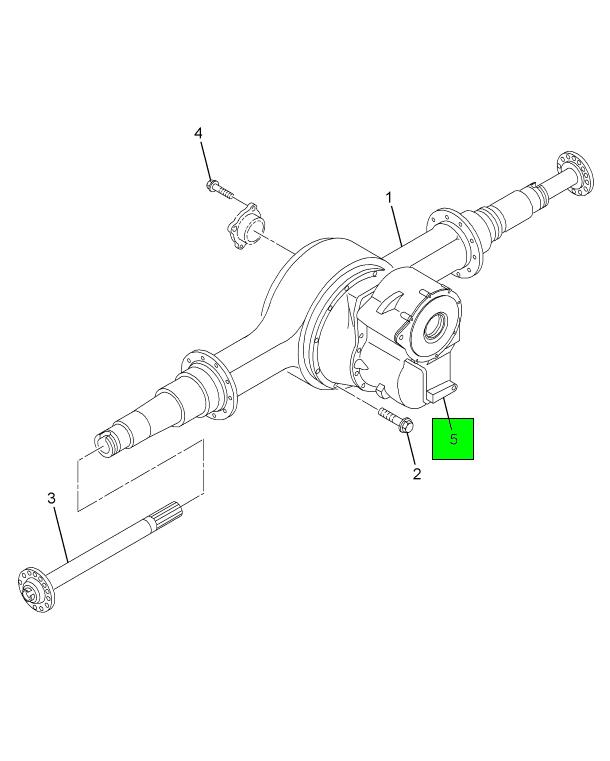

DIFFERENTIAL, FORWARD REAR 6.14:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$3,899.95
$4,679.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
DIFFERENTIAL, FORWARD REAR 6.14:1
Weight
458.96 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1665304C91 |
| RIVET DIFFERENTIAL DRIVE GEAR | 12 | 157490R1 |
| PAD, SHIFT FORK | 2 | 504131C1 |
| BOLT 3/8" X 3/4" | 2 | 24839R1 |
| WASHER FLAT .406" X .812" X .089" | 2 | 25709R1 |
| BEARING PINION | 1 | 1111341C91 |
| SPACER, PIN GEAR | 1 | 1665381C1 |
| GEAR, HELICAL DRIVE | 1 | 1665380C1 |
| NUT, MOUNTING COMPANION FLANGE 1 3/4"-12 UN | 1 | 421913C1 |
| PIN 3/16" X 2 1/2" | 1 | 19415R1 |
| CUP, BEARING | 2 | FP493 |
| BOLT ,HH SPL 3/4NF X 4.5 | 4 | 24895R1 |
| BOLT ,HH SPL 3/4NF X 4.5 | 4 | 1691245C1 |
| BEARING, CONE | 2 | SKF495 |
| BEARING, CONE | 2 | 2104ST |
| ADJUSTER DIFFERENTIAL BEARING LEFT OR RIGHT | 2 | 1665313C1 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER LEFT OR RIGHT | 2 | 1665314C1 |
| BOLT 3/8" X 1" | 2 | 26310R1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1665303C91 |
| BEARING, CUP | 2 | FP72487 |
| BEARING, CUP | 2 | 356162C1 |
| BEARING, CONE /ROLLERS | 2 | FP72225C |
| BEARING, CONE /ROLLERS | 2 | 356161C91 |
| BOLT | 8 | 1691152C1 |
| WASHER, FLAT | 4 | 25712R1 |
| COVER, HELICAL GEAR INTERMEDIATE AXLE DIFFERENTIAL | 1 | 1665301C91 |
| COVER, OPENING OIL PUMP | 1 | 1665306C1 |
| BOLT HH PUMP COVER 5/16 X 1 | 5 | 26678R1 |
| BOLT HH PUMP COVER 5/16 X 1 | 5 | 26678C1 |
| PLUG PATCH THREAD 3/4-14 NPTF, SQ SOCKET | 1 | 586045C1 |
| PLUG, MAGNETIC DRAIN | 1 | 1665376C1 |
| O-RING 2 1/2" I.D. | 1 | 21003R1 |
| RETAINER, FORWARD DIFFERENTIAL | 1 | 1691153C91 |
| BOLT | 8 | 1691252C1 |
| SEAL, OIL OUTPUT FRONT /REAR | 1 | 1651280C91 |
| SEAL, OIL INPUT SHAFT BEARING POWER DIVIDER | 1 | 1691145C2 |
| BOLT | 8 | 1691240C1 |
| SPACER, PINION GEAR NUT | 1 | 1665324C1 |
| CUP, BEARING | 1 | FPHM807010 |
| CUP, BEARING | 1 | 107577R1 |
| BEARING | 1 | 298033R91 |
| GEAR, OIL PUMP DRIVE | 1 | 1665308C1 |
| SHAFT, INPUT POWER DIVIDER LOCK WITH NUT | 1 | 1693019C91 |
| NUT HEXAGON LK COMP FLANGE | 1 | 578881C1 |
| WASHER, THRUST BEARING 1 3/4" I.D. X 2 1/2" O.D. X 1/8" THICK | 1 | 390362R1 |
| COLLAR, SHIFT TANDEM AXLE DRIVE | 1 | 1665332C1 |
| WASHER, THRUST SHIFT CYLINDER POWER DIVIDER LOCK | 1 | 1665315C1 |
| GEAR, HELICAL DRIVE W/BEARING | 1 | 1665309C91 |
| WASHER THRUST DIFFERENTIAL SPIDER GR | 4 | 864360R1 |
| BEARING, ASSEMBLY NEEDLE | 1 | 1665374C91 |
| SEAL, OIL TANDEM AXLE DRIVE | 1 | 1665312C1 |
| GEAR, SIDE INTERMEDIATE AXLE DIFFERENTIAL REAR | 1 | 1665300C1 |
| BEARING, CONE | 1 | TMJLM710949C |
| BEARING, CONE | 1 | 630694C91 |
| CUP, BEARING | 1 | FPJLM710910 |
| CUP, BEARING | 1 | 630695C1 |
| SEAL, OIL THRU SHAFT BEARING DIFFERENTIAL | 1 | 1691144C1 |
| SHAFT, OUTPUT W/NUT | 1 | 1665379C91 |
| WASHER THRUST DIFFERENTIAL SIDE GEAR | 2 | 157494R1 |
| CARRIER, DIFFERENTIAL THRU SHAFT W/BEARING | 1 | 1692929C91 |
| RETAINER IAD FRONT BEARING | 1 | 1665302C1 |
| WASHER, PINION W/NUT | 1 | 597194C1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1696471C1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 597145C1 |
| PUMP, DIFFERENTIAL OIL | 1 | 1660842C91 |
| SCREEN, OIL FILTER | 1 | DS102611 |
| SCREEN, OIL FILTER | 1 | 1665373C91 |
| OIL | 1 | 1665311C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 6.14:1 | 1 | 1665350C91 |
| CYLINDER, SHIFT LOCK DIFFERENTIAL SHIFT LOCK | 1 | 592534C92 |
| RING, RETAINING .616" | 1 | 378066R1 |
| SPRING, DIFFERENTIAL LOCK | 1 | 584278C1 |
| SHAFT, SHIFT FORK LOCK | 1 | 1665334C1 |
| YOKE, SHIFT W/INSERTS | 1 | 1665331C91 |
CROSS REFERENCES
- DANA 340CA154-14X
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
