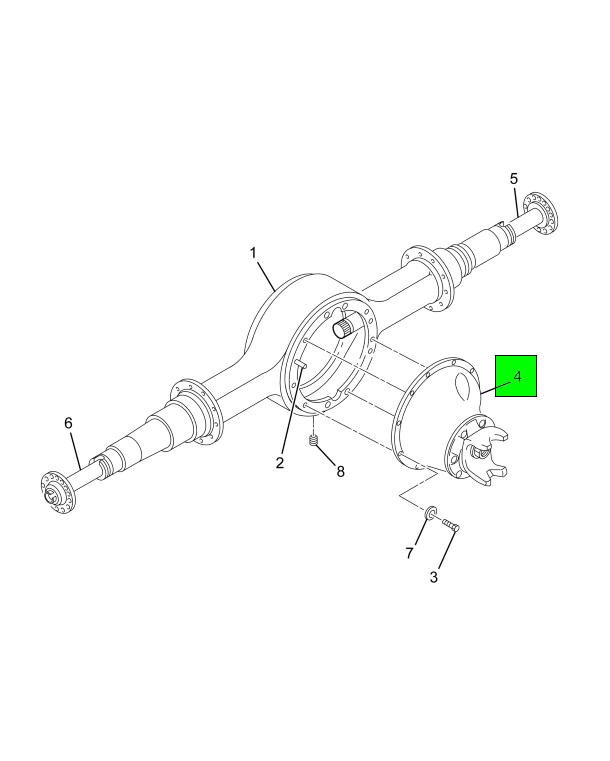

1681787C91
DIFFERENTIAL RR RR 3.21
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL REAR 3.21 14051,GRD
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1681802C91 |
| BEARING CONE OUTER PINION | 1 | 1656945C91 |
| WASHER, FLAT CAP BOLT CARRIER BEARING | 4 | 1653989C1 |
| WASHER, FLAT CARRIER TO HOUSING | 8 | 213524R1 |
| BOLT M12-1.75 X 45 | 8 | MS2120452 |
| BOLT M12-1.75 X 45 | 8 | 30045R1 |
| BEARING, ASSEMBLY REAR PIN 14051 | 1 | 1681803C91 |
| RING, SNAP PINION REAR | 1 | 1681781C1 |
| BOLT M16 X 65 PHC CLS 10.9 | 12 | 30069R1 |
| BOLT HEXAGON HEAD, M22 X 130MM, CL 10.9, PHC | 4 | 30506R1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| NUT, HEXAGON CLASS 10 M16 | 12 | 30170R1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.21:1 | 1 | 1681808C91 |
| NUT, LOCK PINION | 1 | 1651228C1 |
| BOLT ,HH METRIC M16 X 110MM | 12 | 30076R1 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| WASHER, THRUST PINION GEAR | 1 | 1653953C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1656924C91 |
| BEARING, CONE WHEEL INNER | 2 | FLT594A |
| BEARING, CONE WHEEL INNER | 2 | ST2057 |
| CUP, BEARING | 2 | FP592A |
| CUP, BEARING | 2 | 13249D |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14051 | 2 | 1681827C1 |
| PIN, DOWEL | 2 | 1670274C1 |
| GEAR DIFFERENTIAL SPIDER RS23160 | 1 | 1694556C1 |
| CASE, DIFFERENTIAL 3.07 AND 3.73 RATIO | 1 | 1681804C91 |
| BEARING CUP INNER PINION | 1 | SKF9220 |
| BEARING CUP INNER PINION | 1 | 294689R1 |
| BEARING, CUP OUTER PINION | 1 | FPHM813810 |
| BEARING, CUP OUTER PINION | 1 | 152454R1 |
| SEAL OIL PINION | 1 | 1653935C1 |
| BEARING, CONE INNER PINION | 1 | SKF9278 |
| BEARING, CONE INNER PINION | 1 | 294688R91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
