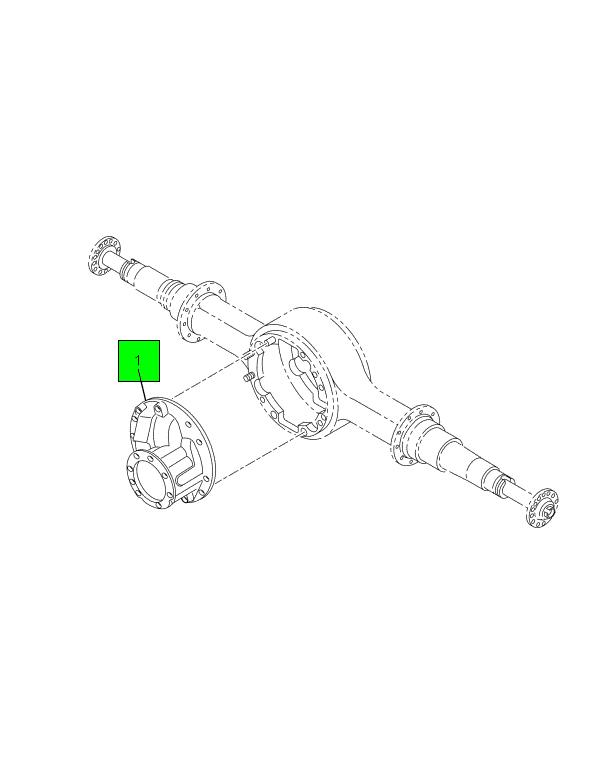

1693613C91
DIFFERENTIAL, REAR REAR 5.52:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$16,999.95
$20,399.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL, REAR REAR 5.52:1
Weight
623.3 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1693660C91 |
| S PIN, DOWEL BEARING CAP | 2 | 73311R1 |
| PLUG | 1 | 16845R1 |
| NUT, ADJUSTER SCREW | 1 | 680053R1 |
| BOLT, ADJUSTING DRIVE GEAR | 1 | 285543C2 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | 581882C1 |
| WASHER, STUD CARRAGE BEARING CAP | 4 | 680457R1 |
| BOLT 5/16" X 3/4" | 4 | 25228R1 |
| WASHER, BOLT BEARING CAP | 4 | 483361C1 |
| LOCK DIFFERENTIAL BEARING ADJUSTER | 2 | 680455R1 |
| ADJUSTER, BEARING DIFFERENTIAL | 1 | 899186R1 |
| ADJUSTER, BEARING DIFFERENTIAL | 1 | 899185R1 |
| CUP, BEARING | 1 | FP592A |
| CUP, BEARING | 1 | SKF52618 |
| CUP, BEARING | 1 | 13249D |
| CUP, BEARING | 1 | 64371H |
| BEARING, CONE | 1 | FP598 |
| BEARING CONE&ROLLERS | 1 | 896756R91 |
| BEARING, CONE | 1 | 13253DC |
| BOLT, DIFFERENTIAL CASE | 8 | 1666315C1 |
| BOLT, DIFFERENTIAL CASE SHORT | 4 | 1666314C1 |
| WASHER, BOLT CARRIER TO HOUSING | 12 | 226846R1 |
| NUT, LOCK DIFFERENTIAL CASE | 12 | 1666309C1 |
| BOLT, DRIVE GEAR | 16 | 1666316C1 |
| WASHER, FLAT DRIVE GEAR | 16 | 1666311C1 |
| NUT, BOLT DRIVE GRIVE | 16 | 1666310C1 |
| CASE, DIFFERENTIAL W/BOLTS | 1 | 1666298C91 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 56028R1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 5.29 OR 7.835.25:1 | 1 | 1693654C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.73 OR 5.52:1 | 1 | 1693649C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.10 OR 6.07:1 | 1 | 1693650C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.30 OR 6.37:1 | 1 | 1693651C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.56 OR 6.75:1 | 1 | 1693652C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.89 OR 7.24:1 | 1 | 1693653C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 5.38 OR 7.96:1 | 1 | 1693655C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 6.14 OR 9.10:1 | 1 | 1693656C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 6.83/10.12:1 | 1 | 1693657C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 7.17/10.62:1 | 1 | 1693658C91 |
| BEARING, ROLLER ASSEMBLY | 1 | 1691630C91 |
| BEARING, ROLLER | 2 | TM78250AC |
| BEARING, ROLLER | 2 | 416317C91 |
| CUP, BEARING PINION | 2 | FP78551 |
| CUP, BEARING PINION | 2 | 68875R1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 581894C91 |
| BOLT 1/2" X 1 1/2" | 9 | 24862R1 |
| WASHER, FLAT CARRIER TO HOUSING | 9 | 213524R1 |
| GEAR, HELICAL DRIVE | 1 | 596381C1 |
| WASHER PINION GEAR | 1 | 581910C1 |
| NUT, LOCK COMPANION FLANGE | 1 | 581893C1 |
| SHAFT, INPUT WITH NUT | 1 | 593181C91 |
| BEARING | 1 | ST2096 |
| BEARING | 1 | ST2178 |
| BEARING, BALL | 1 | TM29620 |
| CUP, BEARING DIFFERENTIAL | 1 | FP493 |
| CUP, BEARING DIFFERENTIAL | 1 | ST897 |
| BEARING, BALL | 1 | ST981 |
| SCOOP, OIL PICKUP | 1 | 593171C1 |
| CASE, ADAPTER DIFFERENTIAL | 1 | 593179C91 |
| GEAR, HELICAL DRIVE | 1 | 596382C1 |
| COVER, ADAPTER CASE W/SEAL | 1 | 573722C91 |
| BOLT 3/8" X 1 1/4" UNC | 9 | 140483H |
| WASHER, FLAT BEARING CAGE | 9 | 1658423C1 |
| WASHER, FLAT BEARING CAGE | 9 | 927445C1 |
| SEAL OIL INPUT BEARING. CAGE | 1 | 596601C91 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| NUT, FLANGE LOCK 1 1/2"-12UNF-2B | 1 | 493840C1 |
CROSS REFERENCES
- MERITOR A173200M18
- MERITOR A173200M18
- MERITOR A173200M1833(5.52
- MERITOR A173200M1833(5.52
- MERITOR A173200M1833(5.52)
- MERITOR A173200M1833(5.52)
- MERITOR A173200M1833552
- MERITOR A173200M1833552
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
