1699288C91
DIFFERENTIAL R/R 2.80 14051
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

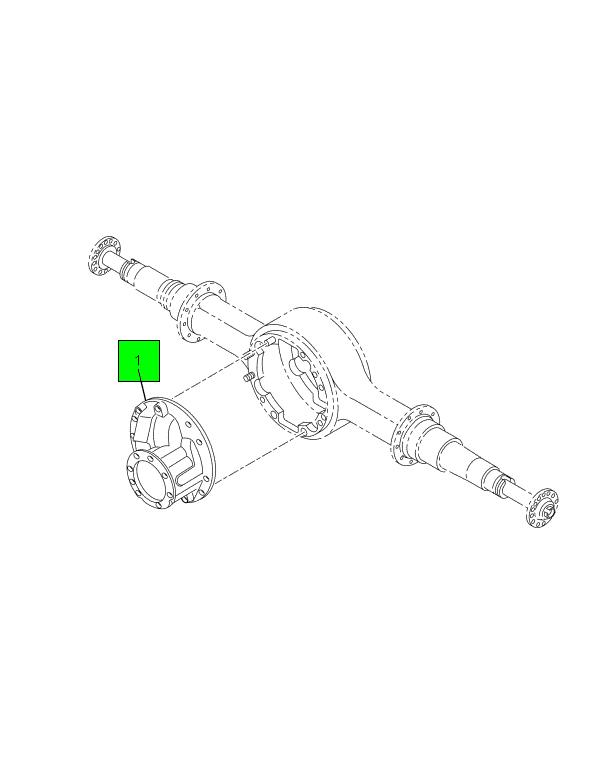

DIFFERENTIAL, REAR 2.80 14051
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1681802C91 |
| BEARING CONE OUTER PINION | 1 | 1656945C91 |
| WASHER, FLAT CARRIER TO HOUSING | 8 | 213524R1 |
| BOLT 12 MM X 45 MM | 8 | 1697666C1 |
| BEARING, ASSEMBLY REAR PIN 14051 | 1 | 1681803C91 |
| RING, SNAP PINION REAR | 1 | 1681781C1 |
| BOLT, GEAR TO CASE M16 X 65 MM | 12 | 1696226C1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| WASHER, FLAT CAP BOLT CARRIER BEARING | 4 | 1653989C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 2.80:1 | 1 | 1698798C91 |
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| BOLT, METRIC M16 X 110 MM | 12 | 1670306C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| WASHER, THRUST PINION GEAR | 4 | 1653953C1 |
| BEARING, CONE WHEEL | 2 | FP594A |
| CUP, BEARING | 2 | FP592A |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14051 | 2 | 1681827C1 |
| BOLT, ADJUSTING LOCK M8 X 20 | 4 | 1691633C1 |
| PIN, DOWEL | 2 | 1670274C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1656924C91 |
| BEARING CUP INNER PINION | 1 | SKF9220 |
| BEARING CUP INNER PINION | 1 | 294689R1 |
| BEARING, CUP OUTER PINION | 1 | FPHM813810 |
| BEARING, CUP OUTER PINION | 1 | 152454R1 |
| SEAL OIL PINION | 1 | 1653935C1 |
| BEARING, CONE INNER PINION | 1 | SKF9278 |
| BEARING, CONE INNER PINION | 1 | 294688R91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
