1653104C91
KIT, BEARING SEAL AND GASKET
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$439.95
$527.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
KIT, BEARING SEAL AND GASKET
Weight
13.03 lbs

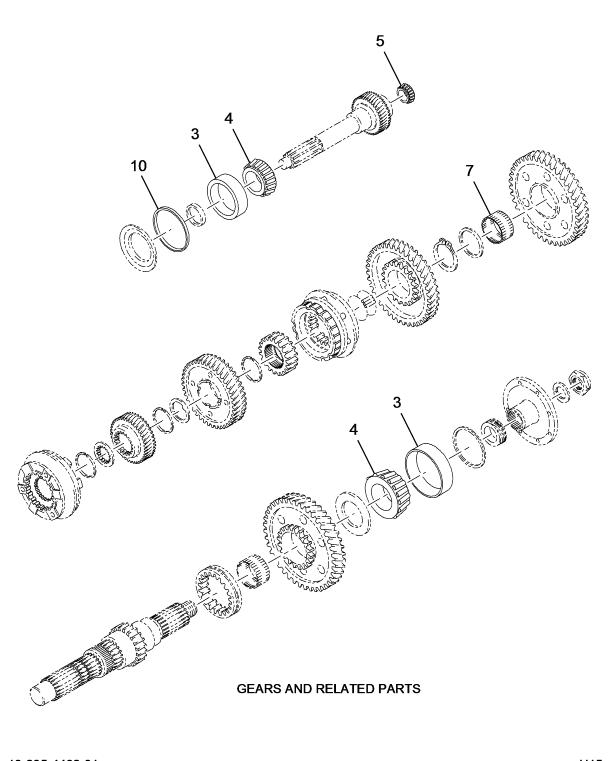

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING, CONE | 2 | FP25584 |
| BEARING, CONE | 2 | ST2069 |
| SHIM | 1 | 4722822 |
| SPACER ,TRANS MANUAL SHIFT GEAR | 1 | 593913C91 |
| SPACER ,TRANS MANUAL SHIFT GEAR | 1 | 576657C1 |
| CUP, BEARING | 2 | FP25520 |
| CUP, BEARING | 2 | ST987 |
| CUP, BEARING | 2 | SKFJM511910 |
| CUP, BEARING | 2 | 630204C1 |
| BEARING, CONE | 2 | FPJM511946 |
| BEARING, CONE | 2 | 630203C91 |
| BEARING, ROLLER | 1 | FP2580 |
| BEARING, ROLLER | 1 | 482363C91 |
| BEARING | 2 | 321981R91 |
| BEARING, NEEDLE ASSEMBLY | 1 | 478993C91 |
| SEAL, OIL DRIVE GEAR BEARING | 1 | 424469C92 |
| SEAL, OIL MAIN SHAFT BEARING REAR | 1 | 596372C1 |
| SEAL, OIL REAR MAIN SHAFT BEARING | 1 | 333750R91 |
CROSS REFERENCES
- TRANSTE 313432-31X
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
