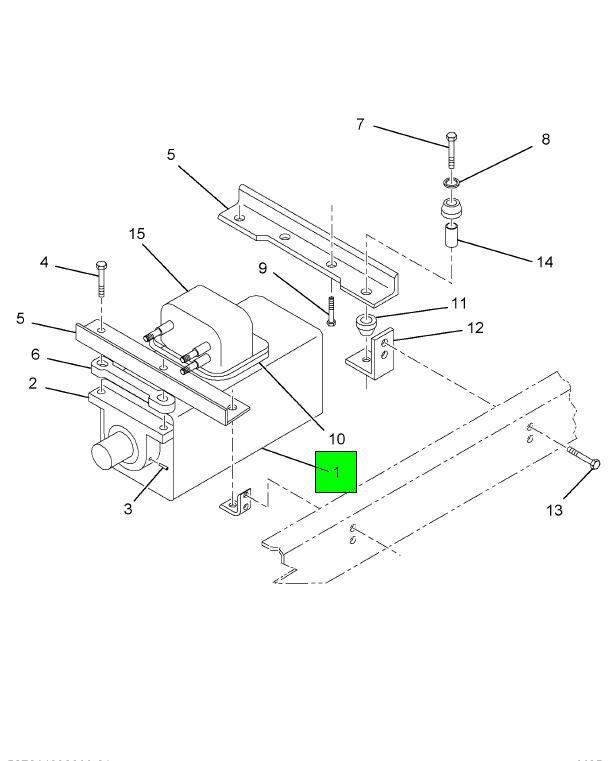

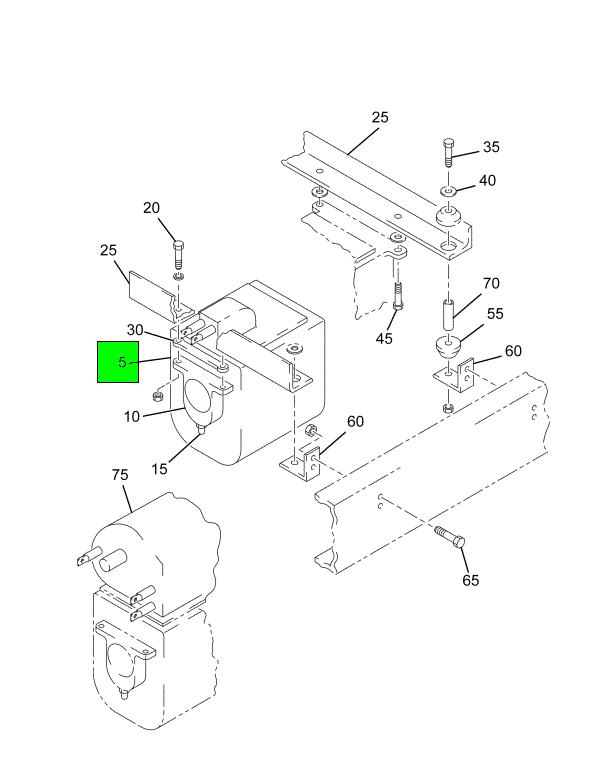

1655068C91
TRANSMISSION AUXILIARY 13566/13567/13578/13579
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$6,299.95
$7,559.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
TRANSMISSION AUXILIARY 13566/13567/13578/13579
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BREATHER TRANSMISSION | 1 | 129278HB |
| RETAINER, DRIVE GEAR FRONT BEARING | 1 | 359026C11 |
| COVER ,CTRSFT FRONT BEARING | 2 | 456401C1 |
| COVER, REAR BEARING COUNTER SHAFT | 1 | 456402C1 |
| ADAPTER, MOUNTING OIL PUMP | 1 | 588075C1 |
| COVER, ADAPTER OIL PUMP | 1 | 592846C1 |
| RING, SNAP COUNTER SHAFT REAR BEARING | 1 | 580434C1 |
| CASE, TRANSMISSION AUXILIARY W/PLUG | 1 | 458022C91 |
| COVER POWER TAKE- OFF OPENING | 1 | 13156H |
| COVER POWER TAKE-OFF OPENING | 1 | 332603C1 |
| GASKET P.T.O. COVER 6 HOLE | 1 | 1653852C91 |
| GASKET P.T.O. COVER 8 HOLE | 1 | 1653853C91 |
| GASKET FRONT AUXILIARY SEAL RETAINER | 1 | 68058R1 |
| GASKET, RETAINING FRONT BEARING | 1 | 456406C1 |
| GASKET FRONT COUNTER SHAFT BEARING RERTAINER | 2 | 456408C2 |
| GASKET REAR COUNTER SHAFT BEARING RERTAINER | 2 | 456409C1 |
| GASKET POWER TAKE-OFF REVERSE SHAFT BEARING COVER | 1 | 861898R1 |
| GASKET SHIFT BAR HOUSING COVER | 1 | 456410C1 |
| NUT, LOCK 1 3/4" UNF | 1 | 19829R1 |
| NUT TYPE 8 7/8" UNF | 2 | 26083R1 |
| PIN DOWEL POWER TAKE-OFF CASE | 2 | 79603H |
| ADAPTER CONTROL LEVER HOUSING | 1 | 472724C1 |
| PLUG MAGNETIC | 2 | DS054254 |
| PLUG MAGNETIC | 2 | 337527C1 |
| PLUG | 1 | 59119DA |
| BEARING BALL | 1 | 3137506R91 |
| PLUG, PIPE SQ HD-1/2NPTF | 1 | 444589 |
| SEAL, OIL DRIVE GEAR BEARING | 1 | 255281C91 |
| RETAINER, MAIN DRIVE GEAR BEARING | 1 | 1654970C1 |
| BOLT, SPECIAL NYLON PATCH | 10 | 26311R1 |
| BOLT, SPECIAL NYLON PATCH | 5 | 458371C1 |
| BOLT 7/16" X 1 1/2" | 6 | 26974R1 |
| BOLT 5/16" X 3/4" | 4 | 26677R1 |
| BOLT 1/2" X 1 1/2" | 4 | 26318R1 |
| BEARING, ROLLER REAR DRIVE GEAR | 1 | 1654969C91 |
| BOLT, HEXAGON HEAD 1/2" X 1-3/4" | 6 | 27406R1 |
| BOLT BOLT, HEXAGON HEAD PREVAIL TRQ 3/8-16UNC X 3/4, | 6 | FULX8686 |
| BOLT BOLT, HEXAGON HEAD PREVAIL TRQ 3/8-16UNC X 3/4, | 6 | 26309R1 |
| BOLT, POWER TAKE-OFF APERTURE COVER | 8 | 441366C1 |
| BOLT, 1/2 X 2-5/8 PHC P/T TYPE | 2 | 27414R1 |
| BOLT, ADAPTER TO CASE | 3 | 573651C1 |
| BOLT 7/16" X 1 1/4" | 15 | 26315R1 |
| SPACER, MAIN SHAFT BEARING | 1 | 1654971C1 |
| SPACER, MAIN SHAFT BEARING 1ST | 1 | 456422C1 |
| WASHER | 1 | 68056R1 |
| BEARING | 1 | 1696586C1 |
| BEARING | 1 | 154920C91 |
| WASHER, COMPANION FLANGE NUT | 2 | 68131R1 |
| WASHER, COMPANION FLANGE NUT | 2 | 456426C1 |
| WASHER .938 X 1.750 X .108 | 4 | 131018 |
| BUSHING SPEEDOMETER DRIVE GEAR | 1 | 47939H |
| RETAINER, BEARING WITH BUSHING REAR | 1 | 597667C91 |
| GASKET REAR MAIN SHAFT BEARING RETAINER | 1 | 456407C1 |
| SEAL OIL | 1 | 459243C1 |
| BEARING REAR OUTOUT SHAFT | 1 | 445419C91 |
| CLUTCH, SLIDING MAIN SHAFT | 2 | 456404C1 |
| SHAFT ,TRANS COUNTER W/SNAP RIN | 2 | 456405C21 |
| GEAR, MAIN SHAFT DRIVE | 1 | 2585030C91 |
| GEAR, MAIN SHAFT DRIVE | 1 | 1654972C1 |
| GEAR, MAIN SHAFT 1-ST | 1 | 505166C1 |
| GEAR ,M/S 2ND | 1 | 456413C1 |
| GEAR, AUXILIARY M/S O/D | 1 | 456531C1 |
| GEAR, AUXILIARY CTRSFT 2ND | 2 | 456532C1 |
| GEAR, AUXILIARY CTRSFT O/D | 2 | 456533C1 |
| GEAR, TRANSMISSION CTRSFT DRIVE | 2 | 456417C1 |
| BEARING, ROLLER | 2 | 592845C91 |
| GEAR ,TRANS MAIN DRIVE | 1 | 1654973C1 |
| GASKET SET AUXILIARY TRANSMISSION | 1 | 459103C92 |
| RETAINER, MAIN DRIVE GEAR BEARING | 1 | 359026C1 |
| CASE ,TRANS | 1 | 456403C1 |
| GASKET POWER TAKE-OFF COVER 6 HOLE | 1 | 1653121C1 |
| GASKET POWER TAKE-OFF COVER 6 HOLE | 1 | 1653120C1 |
| PRODUCT GRAPHICS SHIFT INSTRUCTIONS | 1 | 449931C1 |
| SHAFT TRANSMISSION CENTER | 2 | 456405C2 |
| KEY COUNTER SHAFT GEAR | 2 | 483314C1 |
| SHAFT, MAIN AUXILIARY | 1 | 491693C1 |
| RING, SNAP EXTERNAL 2.832" | 3 | 27121R1 |
| RING, SNAP MAIN SHAFT GEARS | 1 | 591068C1 |
| RING, SNAP | 2 | 327058R1 |
| RING, SNAP MAIN DRIVE GEAR | 1 | 1654974C1 |
| RING, SNAP INTERNAL | 3 | 456420C1 |
| WASHER, THRUST MAIN SHAFT | 3 | 472718C1 |
| WASHER, THRUST MAIN SHAFT | 3 | 456425C1 |
| BEARING CAMSHAFT | 2 | 631635C91 |
| HOUSING, SHIFT BAR COMPLETE | 1 | 505649C91 |
| GASKET AUXILIARY SHIFT BAR HOUSING COVER | 1 | 211565R1 |
| PLUG SPEEDOMETER GEAR HOLE | 1 | 30443V |
| PLUG INTERLOCK HOLE | 1 | 3290096R1 |
| BOLT 7/16" X 1" | 2 | 28017R1 |
| STUD, REAR ANCHOR | 2 | 1646967C1 |
CROSS REFERENCES
- DANA 301474-16
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
