2589123C91

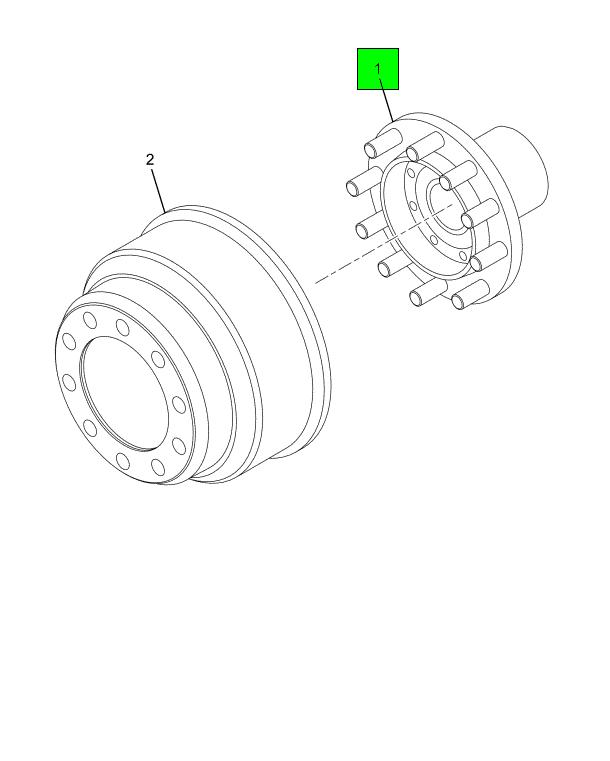

HUB, FRONT WHEEL W/CUPS AND STUD
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$309.95
$371.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB, FRONT WHEEL W/CUPS AND STUD
Weight
34.07 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SPACER, WHEEL BEARING | 1 | 2588659C1 |
| BEARING CUP INNER PRE ADJUSTER 1/2T | 1 | HYTSET427 |
| BEARING CUP INNER PRE ADJUSTER 1/2T | 1 | HYTHM212011PS |
| BEARING CUP OUTER PRE ADJUSTER 1/2T | 1 | HYTSET428 |
| BEARING CUP OUTER PRE ADJUSTER 1/2T | 1 | HYT3720PS |
| BEARING CONE /ROLLERS 1/2T OUT | 1 | HYT3782PS |
| SEAL, AXLE SCOTSEAL PLUS XL FRONT | 1 | CR35058 |
| BEARING CONE /ROLLERS 1/2T INNE | 1 | HYTHM212049PS |
| BOLT, WHEEL STUD M22 X 1.5MM | 10 | 2504222C1 |
| RING, EXCITER FRONT | 1 | 2503653C1 |
CROSS REFERENCES
- CONS ME 10005456
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
