4074755C91

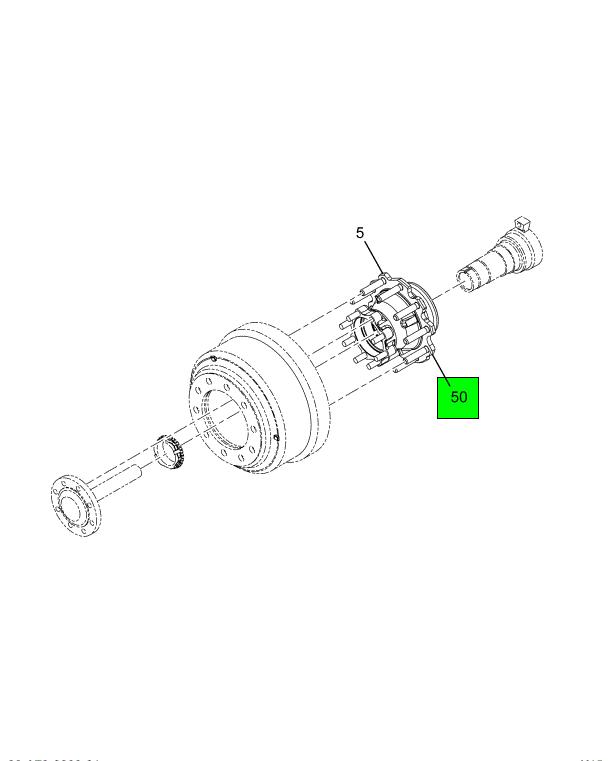

HUB, REAR WHEEL W/ROTOR, R STEEL 10-285 P /A, STEEL RIM ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) DISC
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB, REAR WHEEL W/ROTOR, R STEEL 10-285 P /A, STEEL RIM ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) DISC
Weight
130 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Fleetrite Wheel Bearing; Type: Tapered Roller Bearing Cone; Application: Truck ; Bore Diameter: 3.25 in; Bearing Width: 1.4375 in; Cone Width: 1.4212 in; Details: STANDARD REAR DRIVE AXLE OUTER BEARING | 1 | FLT580 |
| NUT, SPINDLE | 1 | 2510675C1 |
| WASHER, LOCK- SPINDLE NUT | 1 | 2510676C1 |
| SPACER, BEARING | 1 | 2510677C1 |
| SEAL, SCOT XL | 1 | CR47691 |
| RING, EXCITER REAR | 1 | 2503654C1 |
| RING, SNAP- DOUBLE WIND | 1 | 2510674C1 |
| HUB, MACHINED REAR WHEEL | 1 | 2515832C1 |
| Fleetrite Wheel Bearing; Type: Tapered Roller Bearing Cup; Application: Truck ; Outer Diameter: 6 In; Bearing Width: 1.5625 in; Cup Width: 1.1875 in; Details: STANDARD REAR DRIVE AXLE INNER BEARING | 1 | FLT592A |
| Fleetrite Wheel Bearing; Type: Tapered Roller Bearing Cup; Application: Truck ; Outer Diameter: 5.5115 in; Bearing Width: 1.4375 in; Cup Width: 1.1250 in; Details: STANDARD REAR DRIVE AXLE OUTER BEARING | 1 | FLT572 |
| STUD, WHEEL M22 X 1.5MM X 3.92 LONG Y | 10 | 2597039C1 |
| STUD, AXLE SHAFT FLANGE 5/8" X 3.93" | 8 | 1699927C1 |
| WASHER, FLAT PLATED | 10 | 2596468C1 |
| ROTOR, BRAKE | 1 | 2516116C91 |
| ROTOR, BRAKE | 1 | 2601698C1 |
| BOLT, HEXAGON HEAD | 10 | 2596467C1 |
| Fleetrite Wheel Bearing; Type: Tapered Roller Bearing Cone; Application: Truck ; Bore Diameter: 3.75 in; Bearing Width: 1.5625 in; Cone Width: 1.43 in; Details: STANDARD REAR DRIVE AXLE INNER BEARING | 1 | FLT594A |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
