AS77980
SPRING-AIR, GRANNING
Kenworth®
AVAILABLE
8 are currently available
Ships within 7-8 business days
$369.99
$443.99
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing. We make it easy to buy truck parts online.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

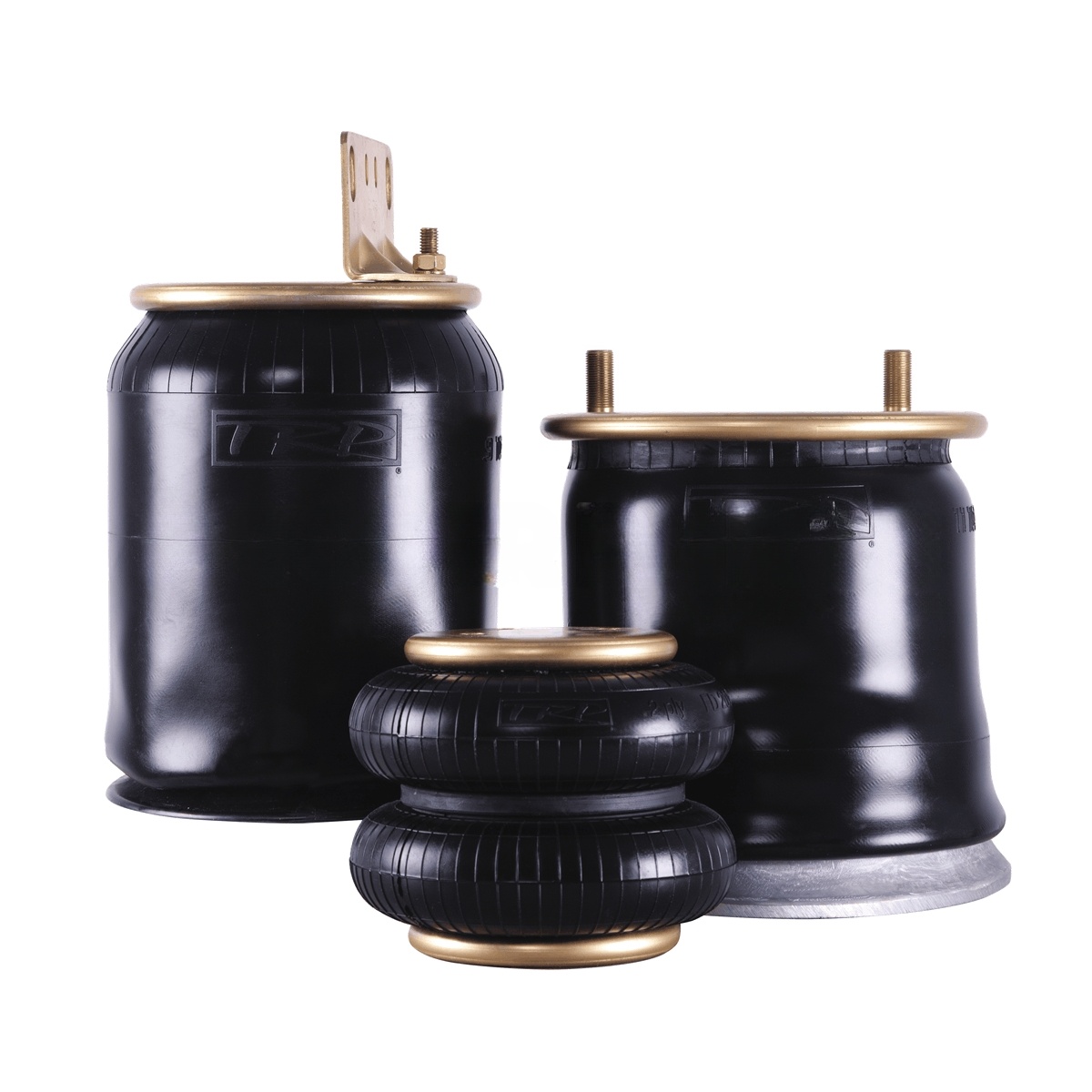

A Granning air spring offering superior ride quality and vehicle stability. Its robust construction ensures durability and performance, essential for enhancing the suspension system's effectiveness and contributing to overall vehicle handling and safety.
SPECIFICATIONS
VMRS Code
016-008-001
OEM Part Number
AS77980-090R
Features
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Diameter (in)
Diameter (in): 15.1
Bellows No.
FT 530-32
Use With
Granning; W&C Steering Tables Liftables: STL-1800 (Ride); W&C Steerables: WCSL-1700-RO (Ride), WCSL-1800-SR (Ride)
Load at 100 psi (lb)
Load at 100 psi (lb): 10800
Load at 80 psi (lb)
Load at 80 psi (lb): 8600
Max Height (in)
Max Height (in): 18.2
Min Height (in)
Min Height (in): 4.6
Ride Height (in)
Ride Height (in): 11
Weight (lb)
Weight (lb): 19.5756
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
