AS87090

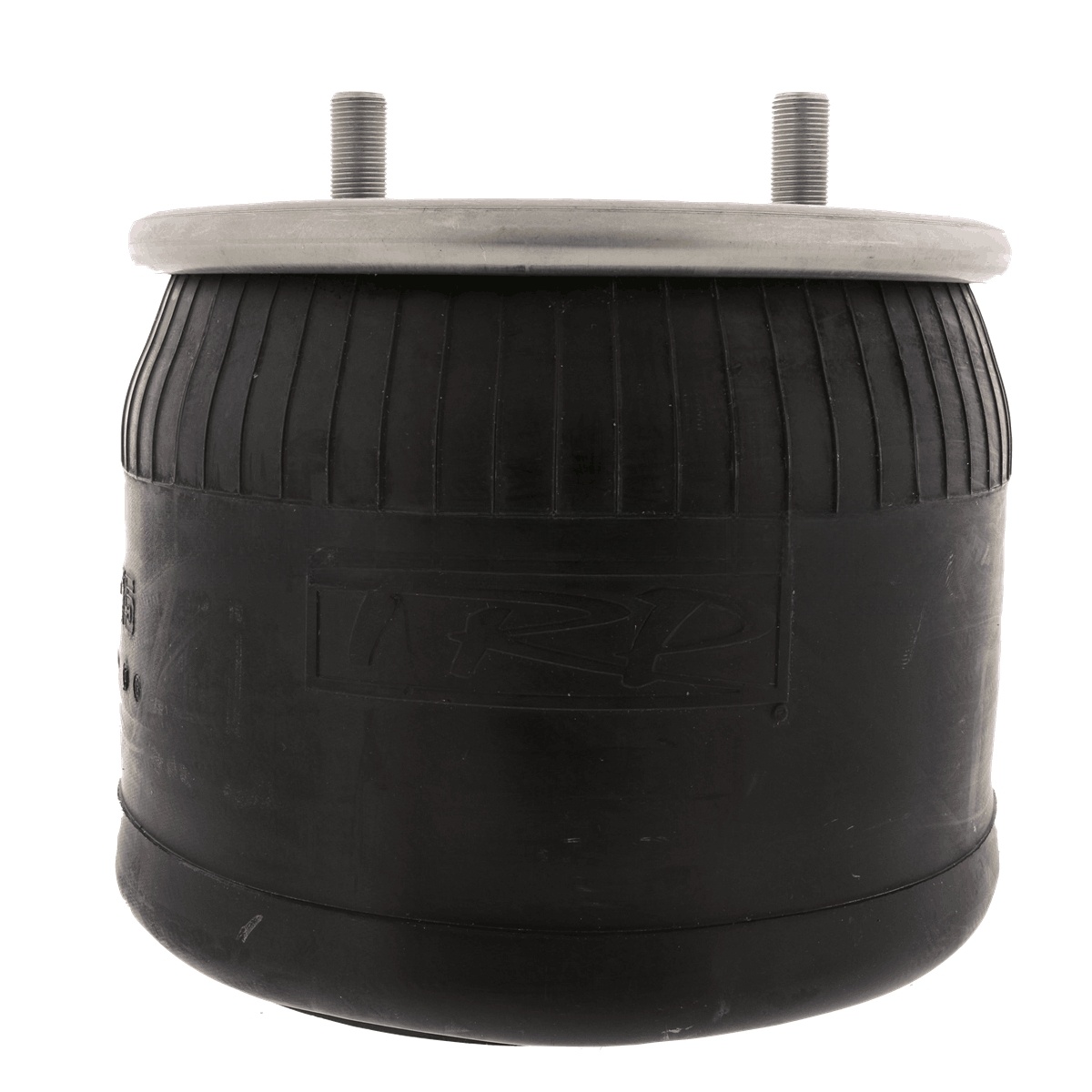

Hendrickson Trailer Air Spring
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$189.95
$227.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your Kenworth trailer suspension with our Hendrickson Trailer Air Spring, engineered for durability and long-lasting performance. Made from chemically formulated vulcanized material, it withstands ozone effects and features a higher burst rate thanks to its innovative fabric construction. Designed specifically for Hendrickson trailers like the Intraax AA230T and Van Traax HKA-180, this spring offers an ideal ride height and load capacity, with precise dimensions including a diameter of 13.9 inches and a max height of 19.3 inches. Each component is 100% leak tested to ensure quality and safety. Perfect for heavy-duty applications, this OEM-quality part guarantees a smooth, stable ride and extended service life. Source One Parts Center is your premier destination for genuine Kenworth OEM parts, ensuring you get the best quality components for your truck. Rely on us for expert advice, fast shipping, and authentic parts to keep your fleet operating at peak performance.
SPECIFICATIONS
VMRS Code
016-008-001
Bellows No.
10 10.5-15
OEM Part Number
AS87090-090R
Features
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Diameter (in)
Diameter (in): 13.9
Use With
Hendrickson (Trailer); Hendrickson: Intraax AA230T, Van Traax HKA-180
Load at 100 psi (lb)
Load at 100 psi (lb): 11300
Load at 80 psi (lb)
Load at 80 psi (lb): 9040
Max Height (in)
Max Height (in): 19.3
Min Height (in)
Min Height (in): 4.9
Ride Height (in)
Ride Height (in): 10
Weight (lb)
Weight (lb): 13.2
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
