FG4535
FITTING-CMPRSN 90DEG 1/4
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$6.99
$8.39
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing. We make it easy to buy truck parts online.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

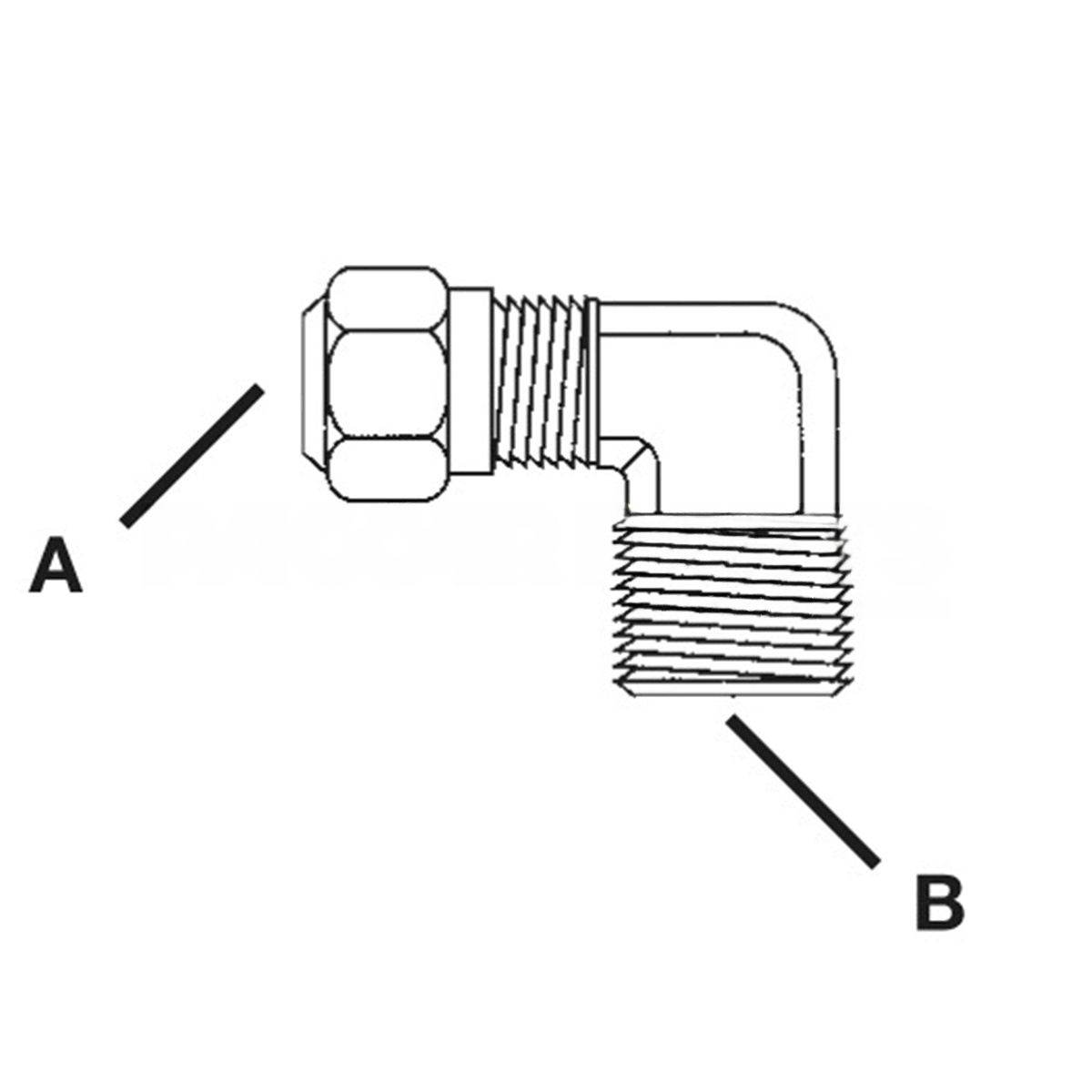

A 90-degree compression fitting designed for tight, secure connections in fluid systems. Its robust construction ensures durability and leak-proof performance, essential for maintaining system integrity. Easy to install, it's ideal for applications requiring a reliable angle connection. This component is crucial for efficient fluid management and operational excellence.
SPECIFICATIONS
VMRS Code
053-008-004
Shape
: 90˚ Male Elbow
Body Material
: Brass
Nut Material
: Brass
Sleeve Material
: Brass
Connection 1 Style
: Compression
Industry Standards
: DOT FMVSS 571.106, SAE J1131, SAE J246
Connection 2 Style
: Male NPTF
Tubing Material
: SAE J844 Type A & B Nylon Tubing
Tube Support Material
: Stainless Steel
Style
: Tube to Pipe
Thread Sealant
: Vibra-Seal 516
Connection 1 Tube O.D. (Inch)
Connection 1 Tube O.D. (Inch): 0.25
Connection 2 Thread Size (Inch)
Connection 2 Thread Size (Inch): 0.375
OEM Part Number
FG4535-410A
Maximum Working Pressure (BAR)
Maximum Working Pressure (BAR): 10
Maximum Working Pressure (PSI)
Maximum Working Pressure (PSI): 150
Maximum Working Temperature (C)
Maximum Working Temperature (C): 93
Maximum Working Temperature (F)
Maximum Working Temperature (F): 200
Minimum Working Temperature (C)
Minimum Working Temperature (C): -40
Minimum Working Temperature (F)
Minimum Working Temperature (F): -40
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
