FG8927
FITTING-PM,#4 TO #6 MNPT,
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$13.99
$16.79
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing. We make it easy to buy truck parts online.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

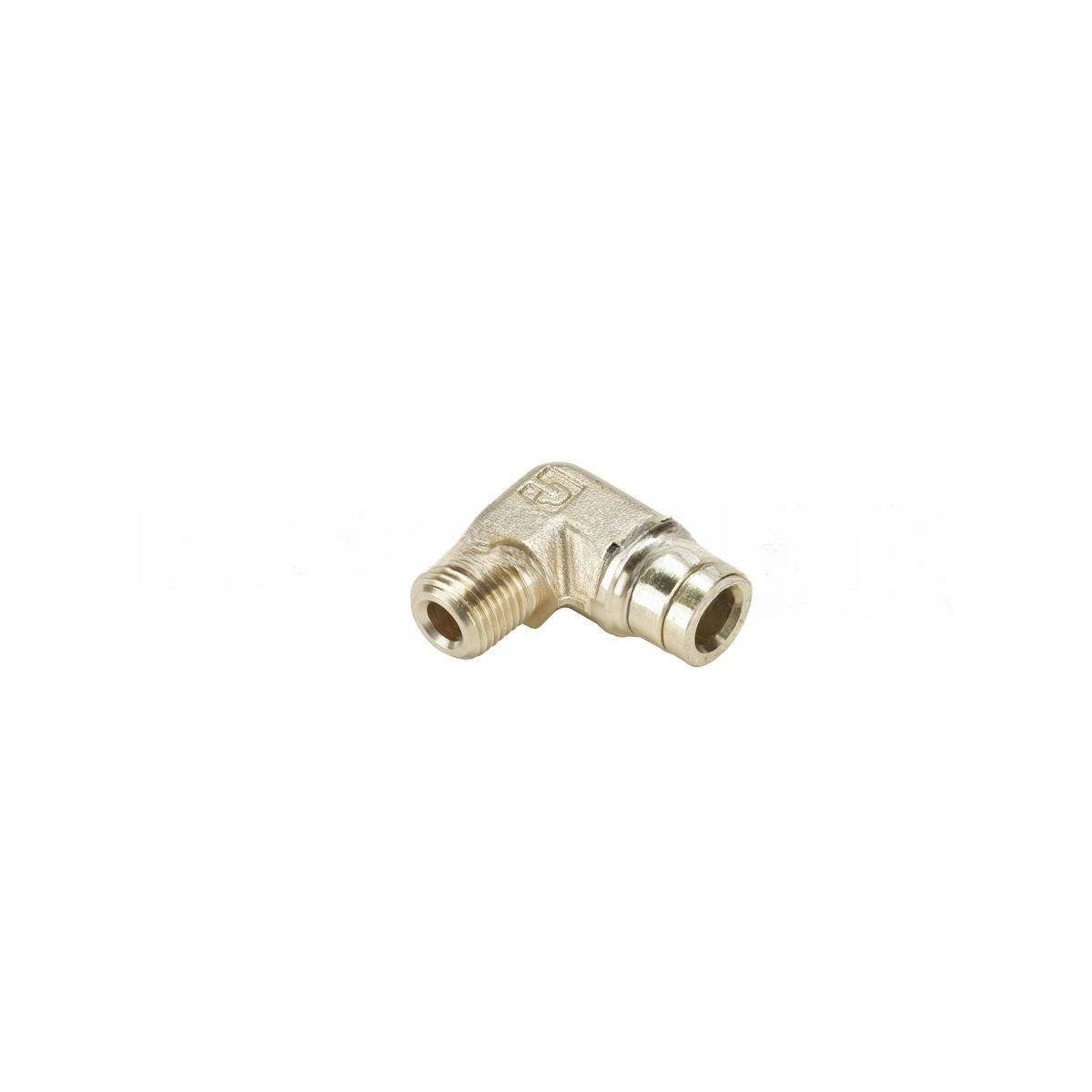

This fitting is designed for seamless transition between different sized pipes, ensuring a secure and leak-proof connection in pneumatic and fluid systems. Its precise manufacturing allows for easy installation and reliable performance, making it essential for maintaining the integrity and efficiency of system connections. Durable and resistant to corrosion, it provides a long-lasting solution for fluid management.
SPECIFICATIONS
VMRS Code
053-008-004
Shape
: 90˚ Rigid Male Elbow
Body Material
: Brass
Collet Material
: Brass
O-ring Material
: Buna N
Industry Standards
: DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Tubing Material
: J844 Type A & B Nylon Tubing
Connection 2 Style
: Male NPTF
Connection 1 Style
: Push-to-Connect
Tube Support Material
: Stainless Steel
Style
: Tube to Pipe
Connection 1 Tube O.D. (Inch)
Connection 1 Tube O.D. (Inch): 0.25
Connection 2 Thread Size (Inch)
Connection 2 Thread Size (Inch): 0.375
OEM Part Number
FG8927-410A
Maximum Working Pressure (BAR)
Maximum Working Pressure (BAR): 17
Maximum Working Pressure (PSI)
Maximum Working Pressure (PSI): 250
Maximum Working Temperature (C)
Maximum Working Temperature (C): 93
Maximum Working Temperature (F)
Maximum Working Temperature (F): 200
Minimum Working Temperature (C)
Minimum Working Temperature (C): -40
Minimum Working Temperature (F)
Minimum Working Temperature (F): -40
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
