AP2261

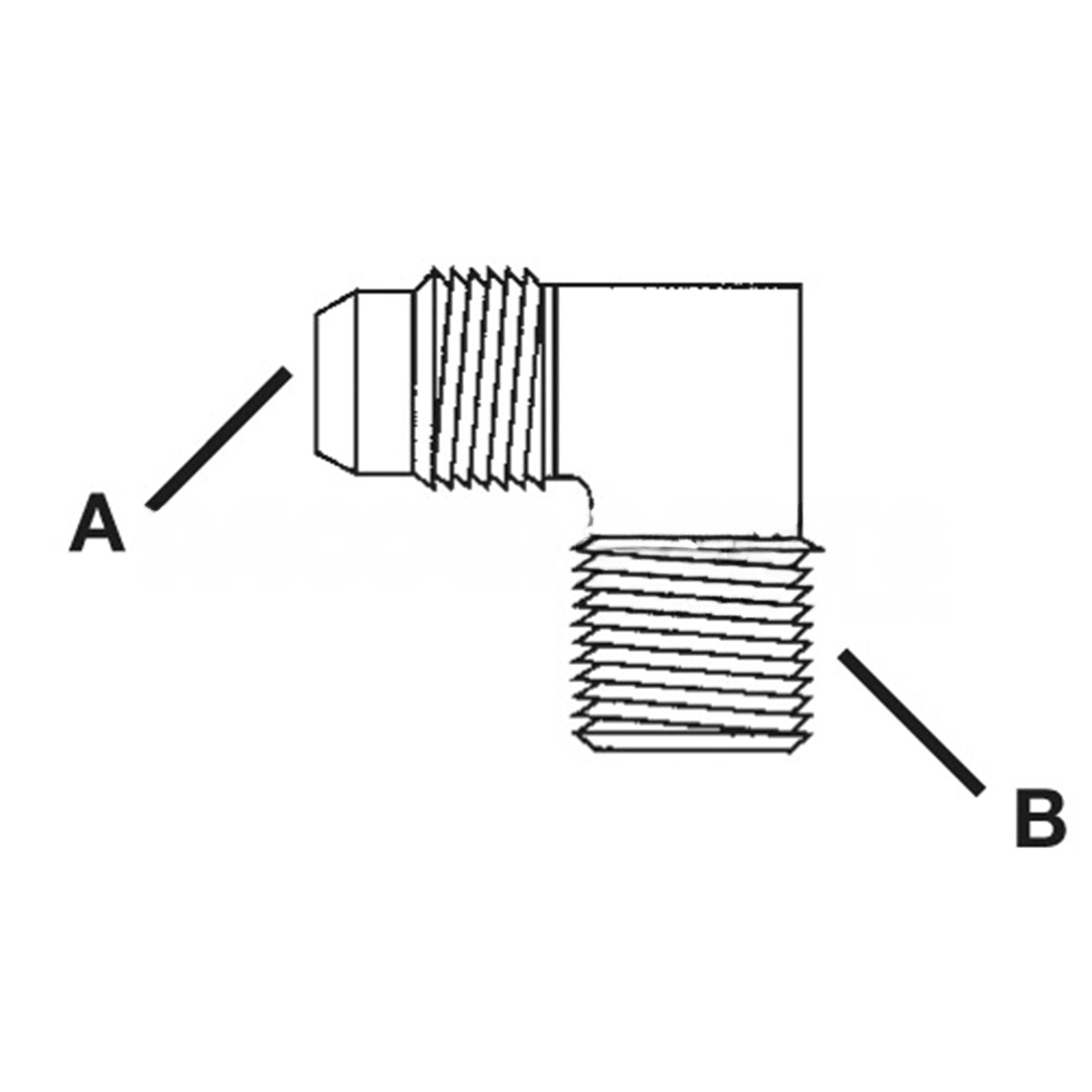

SAE 45 Degree Flare Male Elbow Adapter
Kenworth®
AVAILABLE
1 is currently available
Ships within 8-10 business days
$7.95
$9.54
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The SAE 45 Degree Flare Male Elbow Adapter is a high-quality fitting designed for connecting hydraulic, fuel, or air lines with a 45-degree flare connection. Crafted from brass, it provides a secure, leak-free seal under high pressure, supporting reliable fluid transfer. Its versatile design allows for easy installation in various systems, ensuring proper flow and system integrity. Whether for water, air, or inert gases, this OEM adapter is essential for maintaining safe and efficient connections. Source One Parts Center is your trusted source for genuine OEM parts for Kenworth vehicles, offering unmatched quality and service to keep your truck running smoothly.
SPECIFICATIONS
VMRS Code
053-008-021
Shape
: 90˚ Male Elbow
Body Material
: Brass
Nut Material
: Brass
Tubing Material
: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Connection 1 Style
: Flare
Style
: Flare to Pipe
Connection 2 Style
: Male Pipe
Industry Standards
: SAE J512, SAE J513
Media
: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
OEM Part Number
AP2261-410A
Connection 1 Tube O.D. (Inch)
Connection 1 Tube O.D. (Inch): 0.25
Connection 2 Thread Size (Inch)
Connection 2 Thread Size (Inch): 0.125
Maximum Working Pressure (BAR)
Maximum Working Pressure (BAR): 193
Maximum Working Pressure (PSI)
Maximum Working Pressure (PSI): 2800
Maximum Working Temperature (C)
Maximum Working Temperature (C): 121
Maximum Working Temperature (F)
Maximum Working Temperature (F): 250
Minimum Working Temperature (C)
Minimum Working Temperature (C): -53
Minimum Working Temperature (F)
Minimum Working Temperature (F): -65
