EMM86526
MUFFLER-TYPE 5-10.1"
Kenworth®
AVAILABLE
3 are currently available
Ships within 8-10 business days
$429.95
$515.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This muffler is specifically engineered to fit vehicles requiring a 5-10.1-inch setup. It reduces engine noise effectively while optimizing exhaust flow, which can contribute to better vehicle performance and fuel efficiency. The construction focuses on durability and resistance to corrosive elements, ensuring it maintains performance over time even in challenging conditions.
SPECIFICATIONS
VMRS Code
043-003-001
Max Flow Rate at 2" Hg
: 2250
Max Flow Rate at 3" Hg
: 2700
Clock Position Inlet
: 6

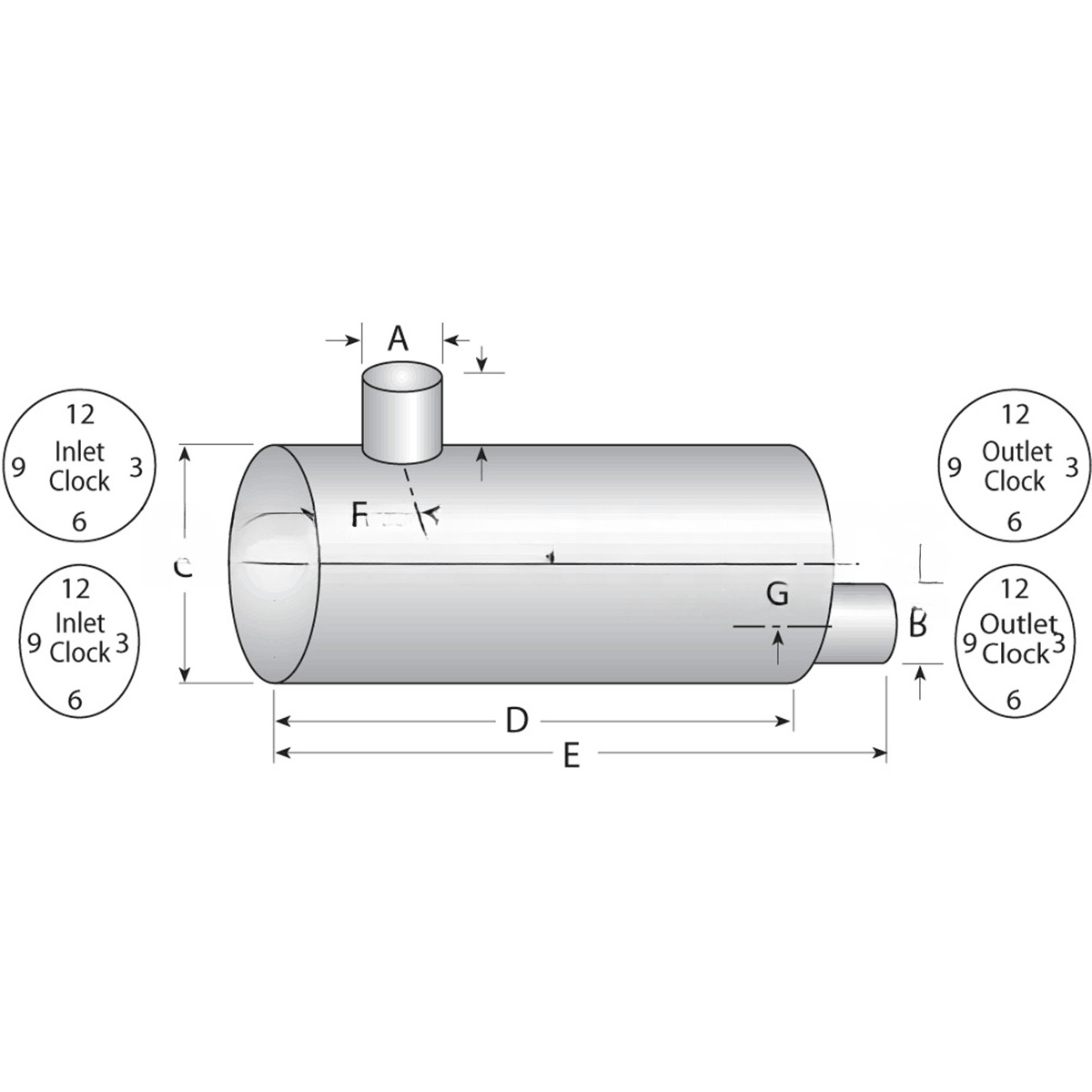

Body Length (D): TRP Parts Mufflers
Body Length (D): TRP Parts Mufflers: 44.5"
Body Size (C)
Body Size (C): 9"
OEM Part Number
EMM86526-176
Inlet I.D. (A)
Inlet I.D. (A): 5"
Inlet Length (H): TRP Parts Mufflers
Inlet Length (H): TRP Parts Mufflers: 2.5"
Inlet Offset (F)
Inlet Offset (F): 3.8"
Outlet I.D. (B)
Outlet I.D. (B): 5"
Overall Length (E)
Overall Length (E): 48"
RECOMMENDED PARTS
