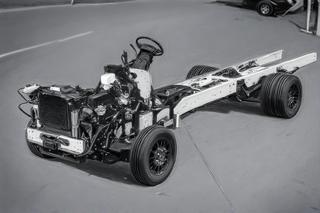

2016 Ford F-53 Stripped Chassis

The 2016 Ford F-53 Stripped Chassis is expertly engineered for constructing Class A motorhomes, emphasizing durability and performance. Powered by a 6.8L Triton V10 SEFI gas engine, it delivers robust capability complemented by a TorqShift HD 6-speed automatic transmission with Tow/Haul mode for enhanced towing efficiency. The chassis supports a range of Gross Vehicle Weight Ratings (GVWR) from 16,000 lbs to 26,000 lbs, suitable for various configurations. Notably, it features multiple wheelbase lengths, including 158.3 inches, 178.3 inches, and 190.3 inches. The front axle employs a forged I-beam design, while a full-floating rear axle enhances stability. Standard power steering operates at a ratio of 18.4:1, with a suspension system utilizing parabolic leaf springs for improved ride quality. Equipped with four-wheel disc brakes featuring ABS, and an 80-gallon fuel tank located aft of the rear axle, the 2016 F-53 chassis upholds Ford’s reputation for reliability and versatility in heavy-duty applications.
