4384457
Coolant Level Switch
Cummins®

Introduction

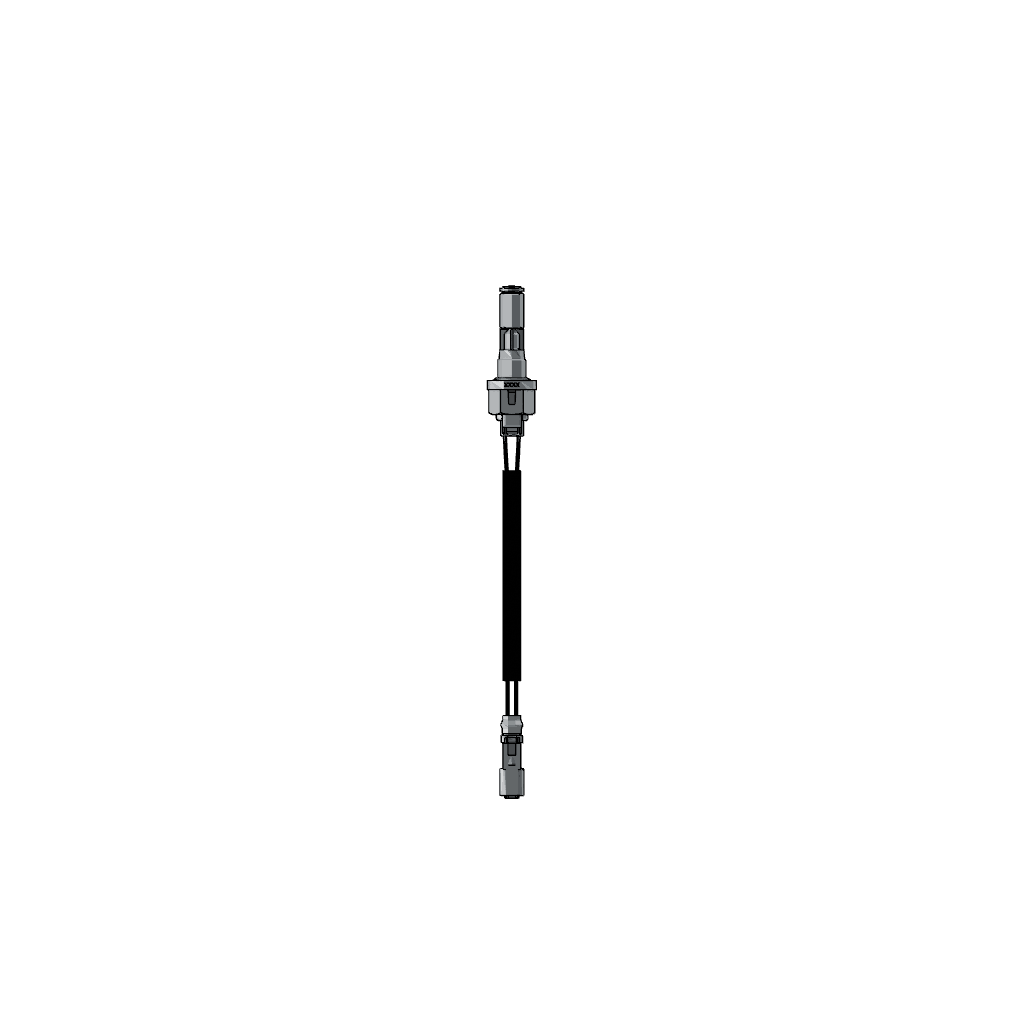

The Cummins 4384457 Coolant Level Switch is a component designed to monitor and regulate the coolant levels within the cooling system of heavy-duty trucks. This part ensures the engine operates within optimal temperature ranges, contributing to the overall efficiency and longevity of the vehicle ¹.

Basic Concepts of Coolant Level Switch

A Coolant Level Switch is a sensor that detects the level of coolant within the radiator or coolant reservoir. It functions by sending signals to the vehicle’s electronic control unit (ECU) when the coolant level falls below a predetermined threshold. This mechanism is vital for maintaining optimal engine temperature, as it allows the ECU to activate warning signals or take corrective actions to prevent engine overheating ².

Purpose of the Cummins 4384457 Coolant Level Switch

The Cummins 4384457 Coolant Level Switch continuously monitors the coolant level. When the coolant level drops, the switch signals the ECU, which can then trigger a warning light on the dashboard. This early warning system allows drivers to address low coolant levels promptly, preventing potential engine damage from overheating.

Key Features

This Cummins part is characterized by its robust design and the use of high-quality materials, ensuring durability and reliability in demanding conditions. Its construction includes a float mechanism that moves with the coolant level, activating the switch at the appropriate time. The switch is also designed to be compatible with a wide range of heavy-duty truck models, enhancing its versatility.

Benefits

Utilizing the Cummins 4384457 Coolant Level Switch offers several advantages. It contributes to improved engine performance by ensuring the engine operates within optimal temperature ranges. This can lead to enhanced reliability and potentially lower maintenance costs for fleet operators, as timely coolant level warnings help prevent engine damage ³.

Installation and Integration

Proper installation of the Cummins 4384457 Coolant Level Switch involves securing it within the coolant reservoir or radiator, ensuring it can accurately detect coolant levels. It is important to follow manufacturer guidelines to ensure the switch is correctly positioned and connected to the vehicle’s electrical system. This integration allows the switch to effectively communicate with the ECU, enabling timely warnings and interventions.

Troubleshooting and Maintenance

Common issues with the Cummins 4384457 Coolant Level Switch may include false warnings or failure to activate. Troubleshooting steps may involve checking the switch’s position, ensuring it is not obstructed, and verifying electrical connections. Regular maintenance, such as inspecting the switch for signs of wear or corrosion, can help ensure its reliable operation. It is also beneficial to periodically check the coolant level and condition as part of routine vehicle maintenance.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes a wide range of power solutions, including engines, filtration, and emissions solutions. With a strong reputation in the automotive industry, Cummins is known for its commitment to quality, innovation, and customer satisfaction. The company’s extensive product offerings cater to various sectors, including heavy-duty trucking, where reliability and performance are paramount.

Coolant Level Switch (Part 4384457) Compatibility with Cummins Engines

The Coolant Level Switch, identified by part number 4384457, is a critical component in maintaining the optimal coolant levels within various Cummins engines. This part is designed to ensure that the engine operates within safe temperature parameters by monitoring and signaling the coolant levels.

ISB6.7 and CM2350 Engines

The ISB6.7 and CM2350 engines, both known for their robust performance and reliability, are compatible with the Coolant Level Switch part 4384457. These engines are often used in heavy-duty applications, including commercial vehicles and industrial machinery, where maintaining consistent coolant levels is essential for performance and longevity.

B101 Engine

The B101 engine, another member of the Cummins engine family, also integrates seamlessly with the Coolant Level Switch part 4384457. This engine is typically found in a variety of applications, from agricultural equipment to construction machinery, where it is crucial to have a reliable system for monitoring coolant levels to prevent overheating and engine damage.

Grouping of Engines

The ISB6.7 and CM2350 engines can be grouped together due to their similar applications and design philosophies, both being high-performance engines used in demanding environments. The B101 engine, while sharing the same core design principles, is often utilized in slightly different applications, such as agricultural and construction machinery, but still benefits from the same critical coolant monitoring system.

Conclusion

The Cummins 4384457 Coolant Level Switch is an essential component in maintaining the optimal performance and safety of engine systems. This switch is integrated into the coolant system, where it monitors the level of coolant within the reservoir. When the coolant level drops below a predetermined threshold, the switch activates, sending a signal to the engine control unit (ECU). This signal triggers a warning light on the dashboard, alerting the operator to the low coolant condition. The switch operates by utilizing a float mechanism or an electronic sensor that detects the coolant level. This component works in conjunction with the coolant temperature sensor, thermostat, and the ECU to ensure that the engine operates within safe temperature ranges. If the coolant level is insufficient, the engine may overheat, leading to potential damage. Therefore, the timely detection of low coolant levels by the Coolant Level Switch is vital for preventing engine overheating and ensuring the longevity of the engine components.
