2211529C92

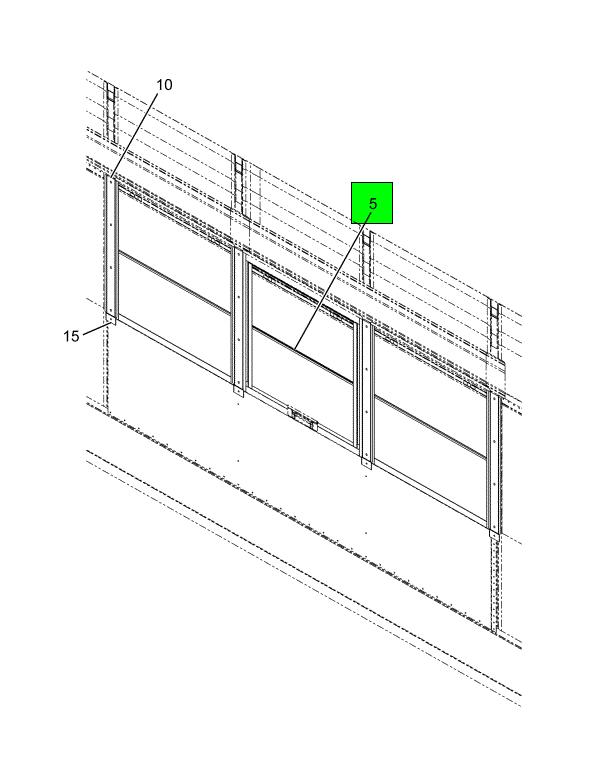

WINDOW, PASS KICK OUT , ASSY H
IC Bus
BACK ORDERED
Please contact us for information on lead time
$979.95
$1,175.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
WINDOW PASS KICK OUT HORIZ S
Weight
27.9994 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, WINDOW EXTRUDED ALUMINUM | 1 | 2209518C4 |
| FR, WINDOW INNER SLIDING KICK OUT EXTRUDED ALUMINUM | 2 | 2205539C2 |
| FR, WINDOW INNER SLIDING KICK OUT EXTRUDED ALUMINUM | 2 | 2205541C2 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205533C3 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211535C1 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211537C1 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211538C1 |
| GLASS, TEMPERED TOP KICK OUT WINDOW | 1 | 2209155C1 |
| GLASS, STORM | 1 | 2209156C1 |
| SEAL, WINDOW GLAZING | 1 | 2209196C1 |
| RETAINER, KICK OUT WINDOW HINGE CAP | 2 | 2205671C2 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205521C3 |
| HANDLE EMERGENCY KICK OUT WINDOW | 1 | 2209523C1 |
| EXTRUSION, ALUMINUM KICK OUT | 1 | 2212342C92 |
| EXTRUSION, ALUMINUM KICK OUT | 1 | 2212342C91 |
| SPACER, WINDOW ALIGNMENT BLOCK | 2 | 2205670C2 |
| RIVET 3/16" X 7/16" .062 GRIP | 2 | 416860001 |
| SEAL, WINDOW FR | 1 | 2210806C1 |
| STOP, WINDOW OPENING | 2 | 2205674C2 |
| SEAL, INNER WINDOW FR | 2 | 2241054C1 |
| SEAL, INNER WINDOW FR | 2 | 2205693C4 |
| SEAL, INNER WINDOW FR | 2 | 2205692C4 |
| SCREW PAN HEAD CR REC NO 8-18 X 3/8 ZND | 8 | 24374R1 |
| GROMMET, BUSHING BLACK 13/32" X 25/64" ID | 1 | 2212558C1 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205523C3 |
| SCREW 1" | 24 | 2209431C1 |
| LOCK, CORNER STORM WINDOW | 8 | 2205162C2 |
| SCREW TYPE AB QUADREX | 8 | 436161001 |
| SCREW, FLAT HEAD COUNTERSUNK TYPE AB #6 X 3/4" | 2 | 91307100 |
| SCREW, SELF- TAPPING 4-24X1/4" | 2 | 24361R1 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211539C1 |
| SEAL, WINDOW GLAZING | 1 | 2209197C1 |
| RIVET, MAGNALOCK 1/4" X 5/8" .080" GRIP | 2 | 430530001 |
| WINDOW HORIZONTAL KICK OUT | 1 | 2211531C1 |
| WINDOW HORIZONTAL KICK OUT | 1 | 2211532C1 |
| FR, WINDOW INNER FIXED KICK OUT EXTRUDED ALUMINUM | 1 | 2205535C2 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205519C2 |
| FR, WINDOW TOP FIXED EXTRUDED ALUMINUM | 1 | 2205527C3 |
| FR, WINDOW INNER SLIDING KICK OUT EXTRUDED ALUMINUM | 1 | 2205537C2 |
