2211529C93

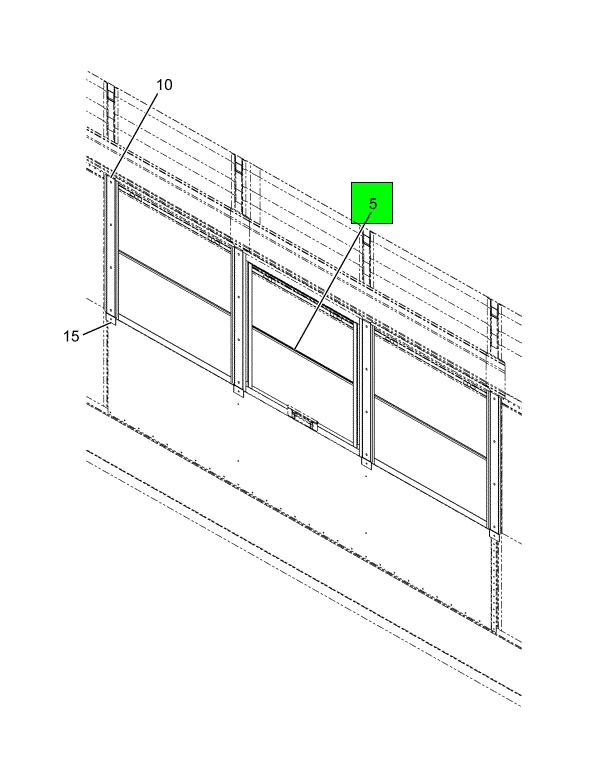

WINDOW PASS KICK OUT ASSEMBLY HORIZ 12 OPN BK CLEAR TEMPERED STOR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$979.95
$1,175.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
WINDOW PASS KICK OUT ASSEMBLY HORIZ 12 OPN BK CLEAR TEMPERED STOR
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, WINDOW EXTRUDED ALUMINUM | 1 | 2209518C4 |
| FR, WINDOW INNER SLIDING KICK OUT EXTRUDED ALUMINUM | 2 | 2205539C2 |
| FR, WINDOW INNER SLIDING KICK OUT EXTRUDED ALUMINUM | 2 | 2205541C2 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205533C3 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211535C1 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211537C1 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211538C1 |
| GLASS, TEMPERED TOP KICK OUT WINDOW | 1 | 2209155C1 |
| GLASS, STORM | 1 | 2209156C1 |
| SEAL, WINDOW GLAZING STORM KOUT | 1 | 4024452C1 |
| RETAINER, KICK OUT WINDOW HINGE CAP | 2 | 2205671C2 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205521C3 |
| HANDLE EMERGENCY KICK OUT WINDOW | 1 | 2209523C1 |
| EXTRUSION, ALUMINUM KICK OUT | 1 | 2212342C92 |
| EXTRUSION, ALUMINUM KICK OUT | 1 | 2212342C91 |
| SPACER, WINDOW ALIGNMENT BLOCK | 2 | 2205670C2 |
| RIVET 3/16" X 7/16" .062 GRIP | 2 | 416860001 |
| STOP, WINDOW OPENING | 2 | 2205674C2 |
| SEAL, INNER WINDOW FR | 2 | 2241054C1 |
| SEAL, INNER WINDOW FR | 2 | 2205693C4 |
| SEAL, INNER WINDOW FR | 2 | 2205692C4 |
| SCREW PAN HEAD CR REC NO 8-18 X 3/8 ZND | 8 | 24374R1 |
| GROMMET, BUSHING BLACK 13/32" X 25/64" ID | 1 | 2212558C1 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205523C3 |
| SCREW 1" | 24 | 2209431C1 |
| LOCK, CORNER STORM WINDOW | 8 | 2205162C2 |
| SCREW TYPE AB QUADREX | 8 | 436161001 |
| SCREW, FLAT HEAD COUNTERSUNK TYPE AB #6 X 3/4" | 2 | 91307100 |
| SCREW, SELF- TAPPING 4-24X1/4" | 2 | 24361R1 |
| FR, WINDOW EXTRUDED ALUMINUM | 2 | 2211539C1 |
| RIVET, MAGNALOCK 1/4" X 5/8" .080" GRIP | 2 | 430530001 |
| SEAL, WINDOW FR | 1 | 2210806C1 |
| WINDOW HORIZONTAL KICK OUT | 1 | 2211531C1 |
| WINDOW HORIZONTAL KICK OUT | 1 | 2211532C1 |
| FR, WINDOW INNER FIXED KICK OUT EXTRUDED ALUMINUM | 1 | 2205535C2 |
| FR, WINDOW HORIZONTAL KICK OUT EXTRUDED ALUMINUM | 1 | 2205519C2 |
| FR, WINDOW TOP FIXED EXTRUDED ALUMINUM | 1 | 2205527C3 |
| FR, WINDOW INNER SLIDING KICK OUT EXTRUDED ALUMINUM | 1 | 2205537C2 |
