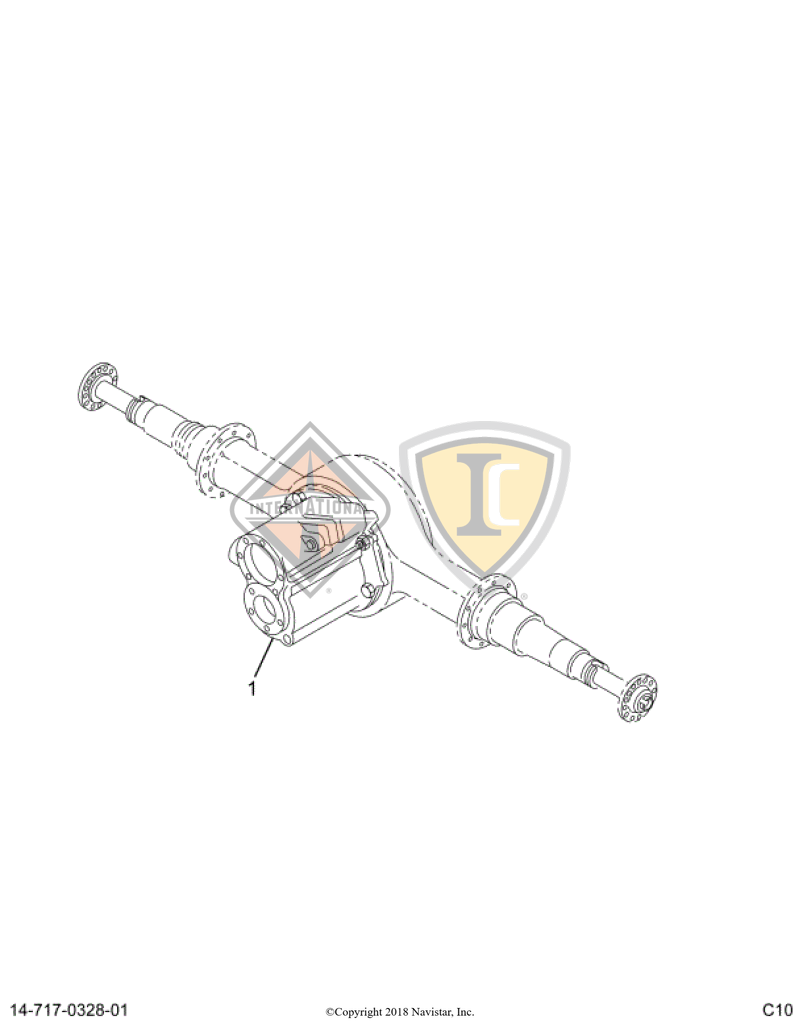

2614012C91
CARRIER DIFFERENTIAL ASSEMBLY RATIO 2.50
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,099.95
$6,119.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
CARRIER DIFFERENTIAL ASSEMBLY RATIO 2.50
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| S PIN, DOWEL BEARING CAP | 4 | 73311R1 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1696253C91 |
| BEARING, CUP OUTER PINION | 1 | FPHM813810 |
| BEARING, CUP OUTER PINION | 1 | 152454R1 |
| BEARING, CONE INNER PINION | 1 | SKF9278 |
| BEARING, CONE INNER PINION | 1 | 294688R91 |
| SPACER, PINION BEARING 6.50 MM | 1 | 1653964C1 |
| SPACER, PINION BEARING .264" | 1 | 1696254C1 |
| SPACER, PINION BEARING 6.68 MM | 1 | 1653968C1 |
| SPACER, PINION BEARING 6.65 MM | 1 | 1653967C1 |
| SPACER, PINION BEARING 6.63 MM | 1 | 1653966C1 |
| SPACER, PINION BEARING .260" | 1 | 1653965C1 |
| SPACER, PINION BEARING .250 RATIO | 1 | 1653959C1 |
| SPACER, PINION BEARING .251" | 1 | 1653960C1 |
| SPACER, PINION BEARING .252" | 1 | 1653961C1 |
| SPACER, PINION BEARING 6.43 MM | 1 | 1653962C1 |
| SPACER, PINION BEARING 6.45 MM | 1 | 1653963C1 |
| BEARING CONE OUTER PINION | 1 | 1656945C91 |
| SHIM, PIN GEAR BEARING CAGE | 1 | 1653957C1 |
| SHIM, BEARING CAGE PINION GEAR .003" | 1 | 1653955C1 |
| SHIM, BEARING CAGE PINION GEAR .005" | 1 | 1653956C1 |
| SHIM, BEARING CAGE PINION GEAR .020" | 1 | 1653958C1 |
| WASHER, FLAT CARRIER TO HOUSING | 8 | 213524R1 |
| BOLT, CARRIER 12MM X 45MM L | 8 | MS2120452 |
| BOLT, CARRIER 12MM X 45MM L | 8 | 1696018C1 |
| BEARING, ASSEMBLY REAR PIN 14051 | 1 | 1681803C91 |
| RING, SNAP PINION REAR | 1 | 1681781C1 |
| BOLT, GEAR TO CASE M16 X 65 MM | 12 | 1696226C1 |
| CYLINDER, AIR INTERMEDIATE AXLE DIFFERENTIAL SHIFT | 1 | 1696245C91 |
| WASHER, BOLT CARRIER TO HOUSING | 12 | 226846R1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.21:1 | 1 | 1681808C91 |
| CASE, DIFFERENTIAL 3.07 AND 3.73 RATIO | 1 | 1696868C91 |
| BOLT, METRIC M16 X 110 MM | 12 | 1670306C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| WASHER, THRUST PINION GEAR | 1 | 1653953C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 1685506C1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14051 | 1 | 1681827C1 |
| BEARING, CONE | 1 | FP52400 |
| BEARING, CONE WHEEL | 1 | FP594A |
| CUP, BEARING | 1 | FP52618 |
| CUP, BEARING | 1 | FP592A |
| WASHER, FLAT CAP BOLT CARRIER BEARING | 4 | 1653989C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 1 | 683774R1 |
| PIN, DOWEL | 1 | 1670274C1 |
| GEAR DIFFERENTIAL SPIDER RS23160 | 1 | 1694556C1 |
| GEAR SET, SIDE AND PINION DIFFERENTIAL | 1 | 1653986C91 |
| YOKE, SHIFT | 1 | 1696230C1 |
| COLLAR, SHIFT CLUTCH 46 SPLINE | 1 | 1685507C1 |
| SHAFT, SHIFT FORK LOCK | 1 | 2603550C91 |
| SHAFT, SHIFT FORK LOCK | 1 | 1696232C1 |
| SPRING, SHIFT FORK | 1 | 1696233C1 |
| BOLT, ADJUSTING LOCK M8 X 20 | 4 | 1691633C1 |
| O-RING AIR CYLINDER | 1 | 1696234C1 |
| SEAL, SHIFT MOTOR TO CARRIER | 1 | 1696235C1 |
| BOLT, SHIFT CYLINDER | 1 | 1696236C1 |
| HARNESS, DIFFERENTIAL LOCK * SWITCH, WARNING LIGHT (ROCKWELL) | 1 | 2606013C91 |
| HARNESS, DIFFERENTIAL LOCK * SWITCH, WARNING LIGHT (ROCKWELL) | 1 | 2026065C91 |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| SEAL OIL PINION | 1 | 1653935C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1656924C91 |
| BEARING CUP INNER PINION | 1 | SKF9220 |
| BEARING CUP INNER PINION | 1 | 294689R1 |
CROSS REFERENCES
- FORDSVC 4C4Z 4010U
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
