3558052
AIR COMPRESSOR
Cummins®
DISCONTINUED
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing. We make it easy to buy truck parts online.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A crucial component for engine performance, this air compressor embodies Cummins' commitment to quality and reliability. Designed to efficiently supply compressed air to various parts of the engine, it is vital for operations such as emission control and instrument actuation. This part showcases Cummins' expertise in delivering durable and dependable engine components.
RELATED PARTS
SPECIFICATIONS
Service Part Topic
96T12-4
Hazardous Material
Non-Hazardous (NOI, ICE/Auto)
Notes
Recon Equivalent 3558052 RX
Package Dimensions
14.8 x 13.3 x 8.88 in
Weight
50 lb

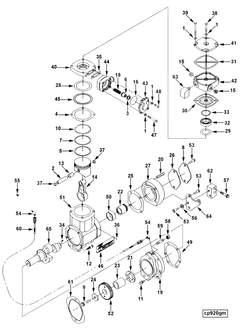

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Plain Washer | 4 | S626 |
| Piston Pin | 1 | 119810 |
| Rectangular Ring Seal | 1 | 127936 |
| Air Compressor Gasket | 1 | 3058952 |
| Oil Piston Ring | 1 | 180810 |
| Unloader Valve Cap | 1 | 184240 |
| Compression Piston Ring | 1 | 187350 |
| Cover Plate | 1 | 204048 |
| Twelve Point Cap Screw | 1 | 554316 |
| Compression Piston Ring | 1 | 650330 |
| Captive Washer Cap Screw | 4 | 3011715 |
| Captive Washer Cap Screw | 2 | 3012472 |
| Compressor Connecting Rod | 1 | 3018151 |
| Pipe Plug | 2 | 3027232 |
| O Ring Seal | 1 | 3043995 |
| Compressor Piston | 1 | 3045670 |
| Thrust Bearing | 1 | 3050924 |
| Spline Adapter | 1 | 3050926 |
| Mounting Spacer | 1 | 3050927 |
| Plain Washer | 1 | 3053093 |
| Fuel Pump Gasket | 1 | 3060539 |
| Hydraulic Pump Gasket | 1 | 3558515 |
| Compressor Intake Valve | 1 | 3558664 |
| Compressor Exhaust Valve | 1 | 3558665 |
| Valve Disc Retainer | 1 | 3558690 |
| Spring Washer | 1 | 3558691 |
| Orifice Plug | 2 | 3558712 |
| Connection Gasket | 1 | 3558723 |
| Drive Screw | 2 | 3558735 |
| Retaining Ring | 2 | 3558754 |
| Hexagon Head Cap Screw | 1 | 3558797 |
| Hexagon Head Cap Screw | 4 | 3558798 |
| Compressor Valve Body | 1 | 3558799 |
| Cover Plate | 1 | 3558815 |
| Unloading Valve Body | 1 | 3558828 |
| Air Compressor Inlet Connection | 1 | 3558832 |
| Compressor Intake Valve Retainer | 1 | 3558899 |
| Hexagon Head Cap Screw | 2 | 3558921 |
| Hexagon Head Cap Screw | 2 | 3558922 |
| Support Gasket | 1 | 3558947 |
| Compressor Crankcase | 1 | 3558954 |
| Hexagon Flange Head Cap Screw | 2 | 3903112 |
| Hexagon Head Cap Screw | 4 | 3559064 |
| Hydraulic Pump Adapter | 1 | 3558939 |
| Air Compressor Gasket | 1 | 3559049 |
| Socket Head Cap Screw | 4 | 3558814 |
| Compressor Head | 1 | 3559047 |
| Crankshaft And Plug | 1 | 3558794 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
